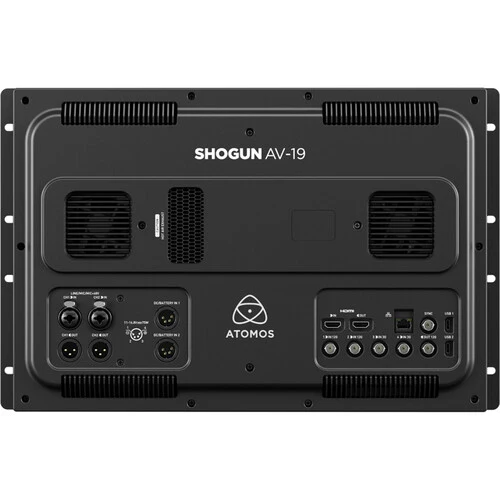

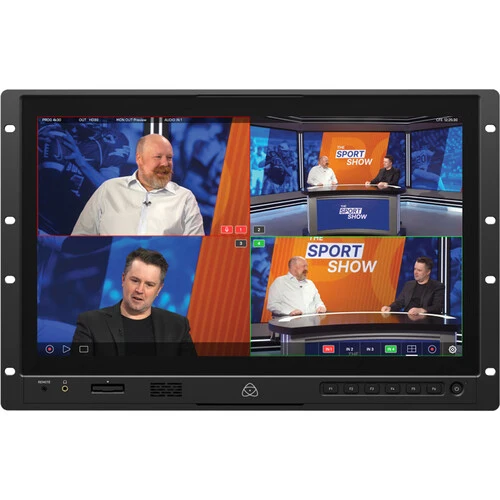

Atomos 19" Shogun AV-19 Rackmount 4K HDR Monitor-Recorder-Switcher

Product Features

• 19" 3840 x 2160 Capacitive Touchscreen

• HDMI and 12G-SDI Video I/O, LANC Control

• 6K Raw, 10-Bit HDR, NDI|HX3 Support

• 1200 cd/m² Brightness

• Real-Time ProRes/Raw, DNx, Pre-Roll, LTC

• ISO Recording to CFexpress or USB-C

• Custom 3D LUTs, XLR I/O, Speakers

• Quad Split or Fullscreen, 7 RU Rack Size

• Professional Built-In Monitoring Tools


In the Box

• Atomos 19" Shogun AV-19 Rackmount 4K HDR Monitor-Recorder-Switcher

• 4-Pin XLR Power Supply

• IEC Power Cable Kit (5 International Plugs)

• 10 x Rackmount Nut + Bolt

• Cleaning Cloth

Overview

Shogun AV 19

A 19-inch 4K HDR monitor-recorder-switcher designed for professional live production, broadcast, and video village environments.
Shogun AV 19 expands the Atomos ecosystem by introducing a rack-mountable, multi-camera monitoring and switching solution—built for modern live and IP-based workflows.

Built for Control. Designed for Scale.
With its rugged 19” rack-mount design and stunning DCI-P3 4K HDR display, Shogun AV 19 delivers exceptional visibility and reliability in demanding environments—from OB trucks to live events and broadcast control rooms.

Built-in switching supports four ISO camera feeds plus a fifth program channel, enabling smooth, real-time multi-camera operation without additional hardware.

Camera Control + IP Workflows, Built In
Integrated camera control allows direct access to key exposure settings—and touch-to-focus on supported mirrorless cameras.

With native NDI HX3 and built-in Ethernet, Shogun AV 19 delivers high-quality, low-latency IP video over a single RJ45 cable, making it ideal for customers transitioning to IP-based production workflows.

Broadcast-Grade Audio, Fully Integrated
A complete audio solution is built directly into Shogun AV 19:

• Dual balanced XLR inputs with 48V phantom power
• Embedded SDI / HDMI audio
• Integrated speakers
• Dedicated headphone monitoring

A ready-to-deploy solution, straight out of the rack.

Shogun AV 19 does not replace the Atomos Sumo.
Both products serve different professional needs. The Shogun AV 19 is designed for rack-mounted live production, broadcast, and IP-based workflows, while the Atomos Sumo remains ideal for on-set monitoring and standalone recording. Together, they offer flexible solutions without overlap.
