Hollyland Pyro Video Transmission Monitoring Kit

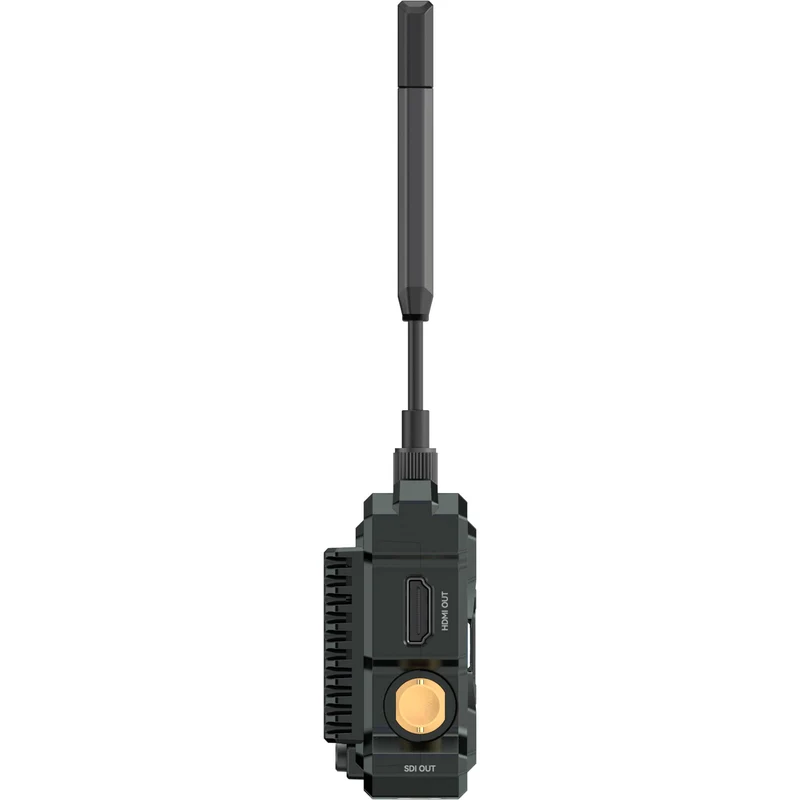

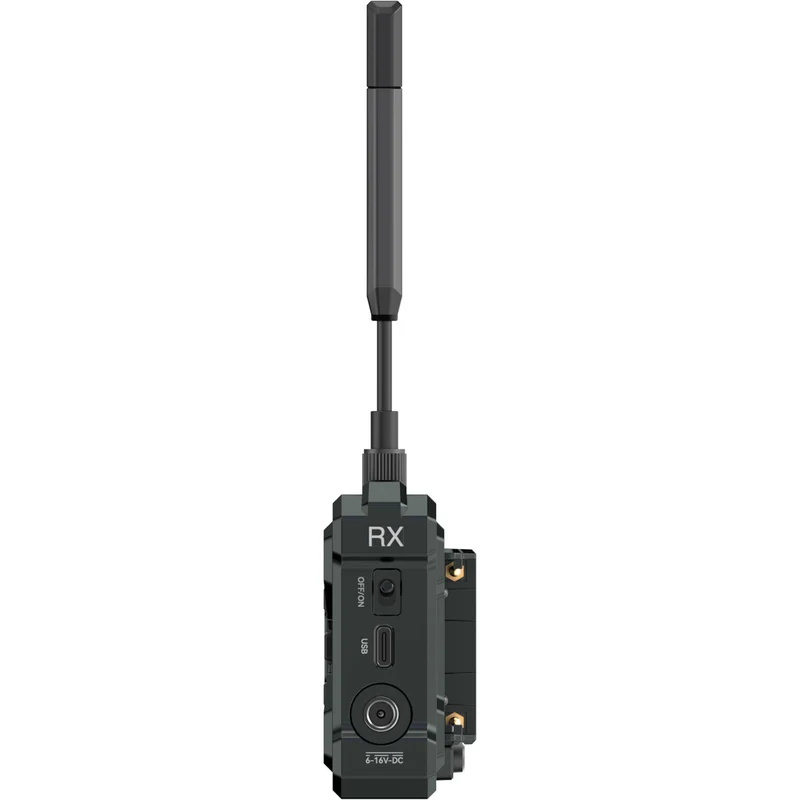

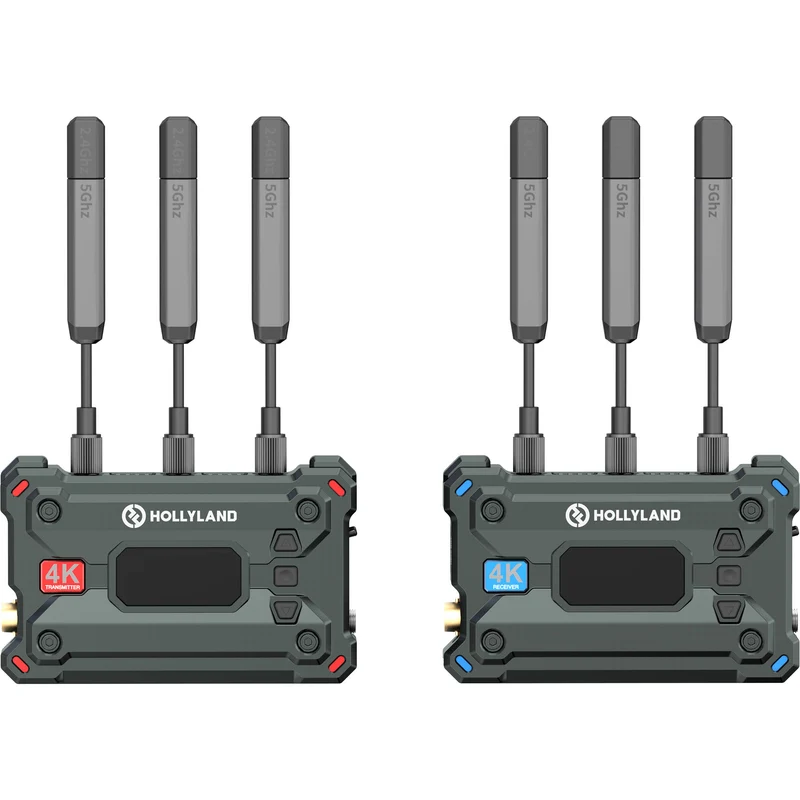

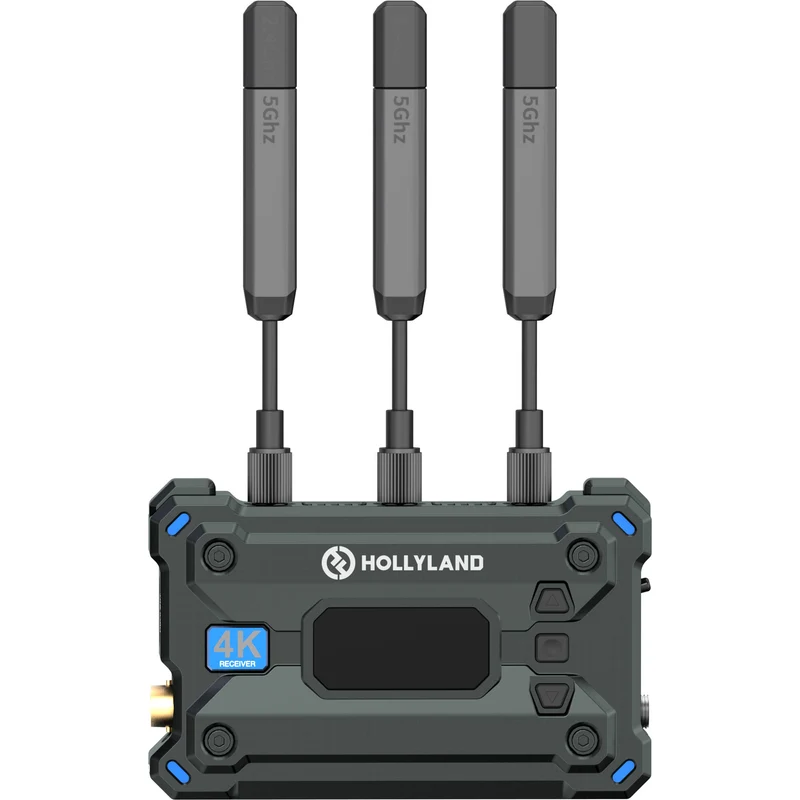

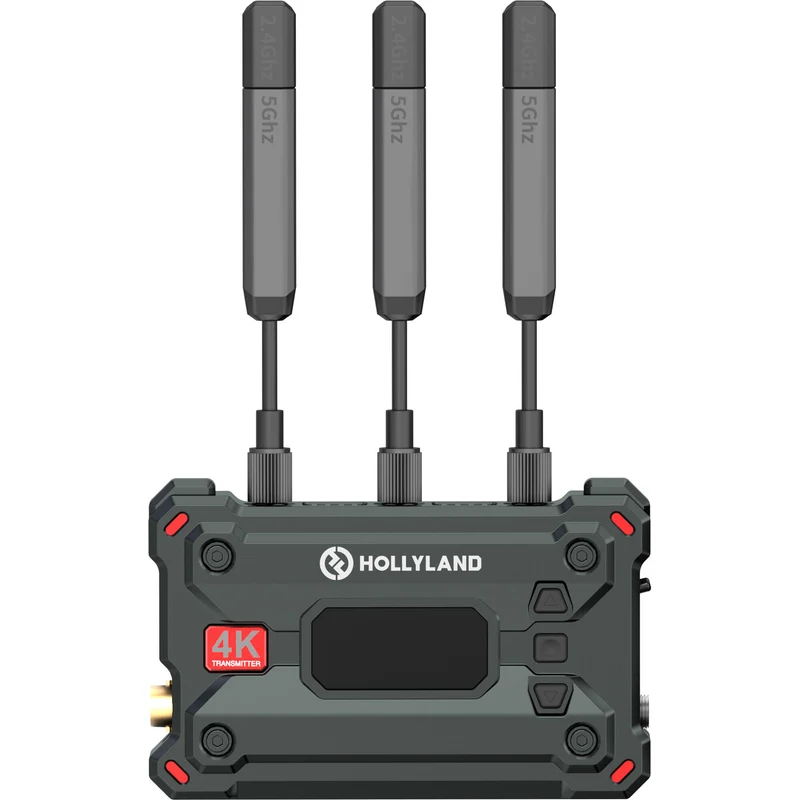

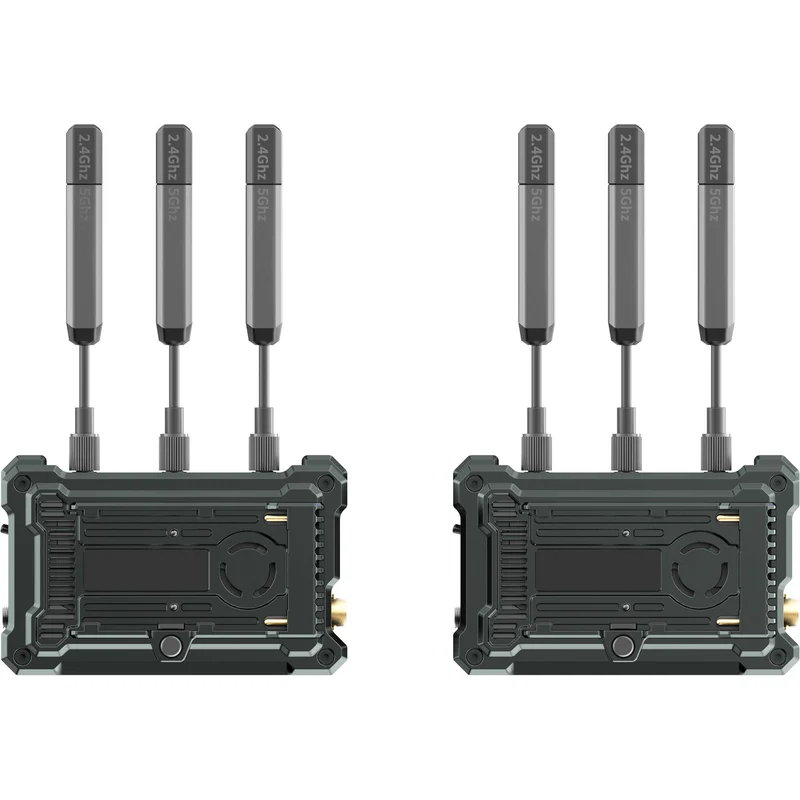

Hollyland Pyro Video Transmission Monitoring Kit is a wireless video transmission and monitoring system that combines a Pyro 7 wireless transceiver monitor with a Pyro S 4K HDMI/SDI wireless video transmitter and receiver, plus paddle antennas for all units. The kit supports wireless monitoring of a camera feed from multiple locations, and the Pyro S can transmit to up to two receivers simultaneously. The Pyro 7 can operate as either a receiver or a transmitter while displaying the feed on its 7" touchscreen.

7" Touchscreen LCD Monitor

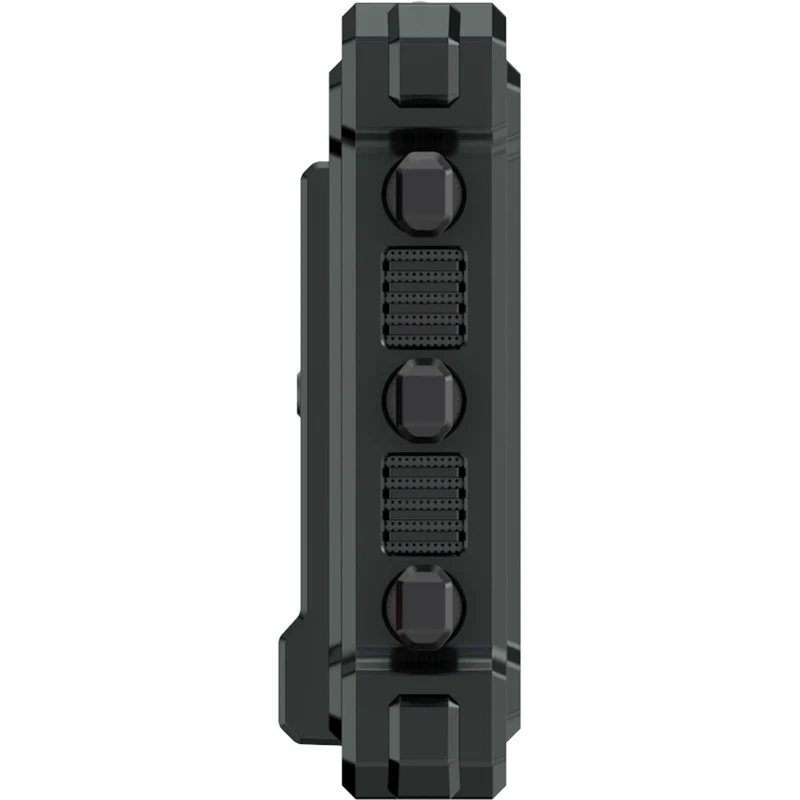

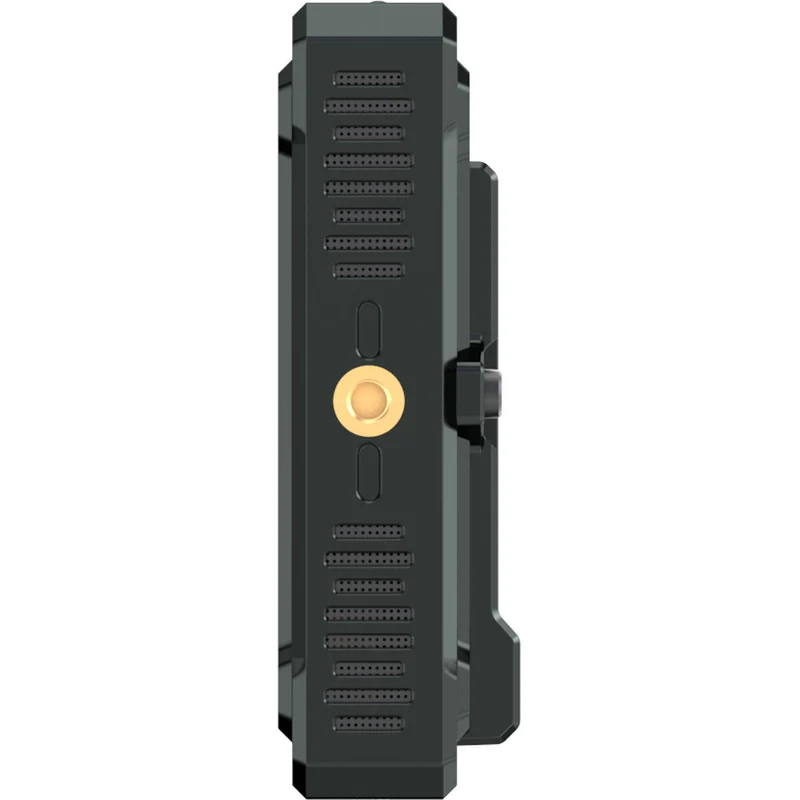

The Pyro 7 features a 7.0" / 17.8 cm LCD panel with a native resolution of 1920 x 1200, a 16:9 aspect ratio, 1200 nits maximum brightness, and a 1000:1 contrast ratio. The touchscreen interface provides control of the monitor, and the display supports LUTs along with focus peaking and waveform image controls. The monitor is constructed from aluminum and magnesium and measures 7.1 x 5 x 1.3" / 180 x 127 x 31.8 mm excluding the antenna, weighing 1.2 lb / 545 g excluding the antenna.

Wireless Transmission Range and Latency

The system transmits over a proprietary wireless connection with a line-of-sight range of up to 1300' / 396.2 m, and a range of 650' / 198.1 m. Latency is rated at 60 ms. RF power is 23 dBm with RF sensitivity of -80 dBm, and channel bandwidth options are 40 MHz and 20 MHz. The frequency range covers US 5.1 to 5.8 GHz and US 2.412 to 2.484 GHz. Wireless video compression is
