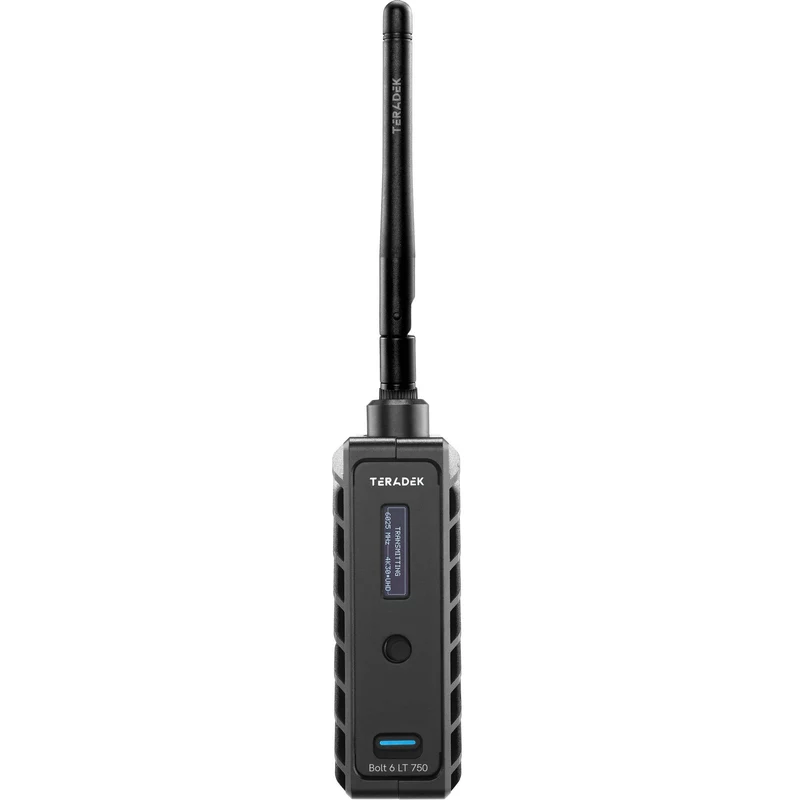

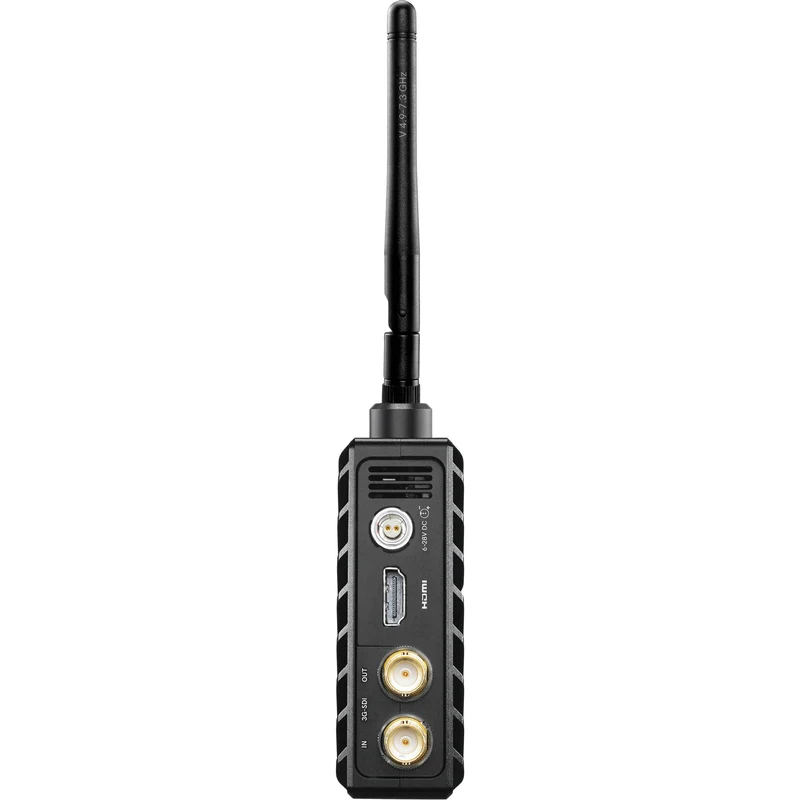

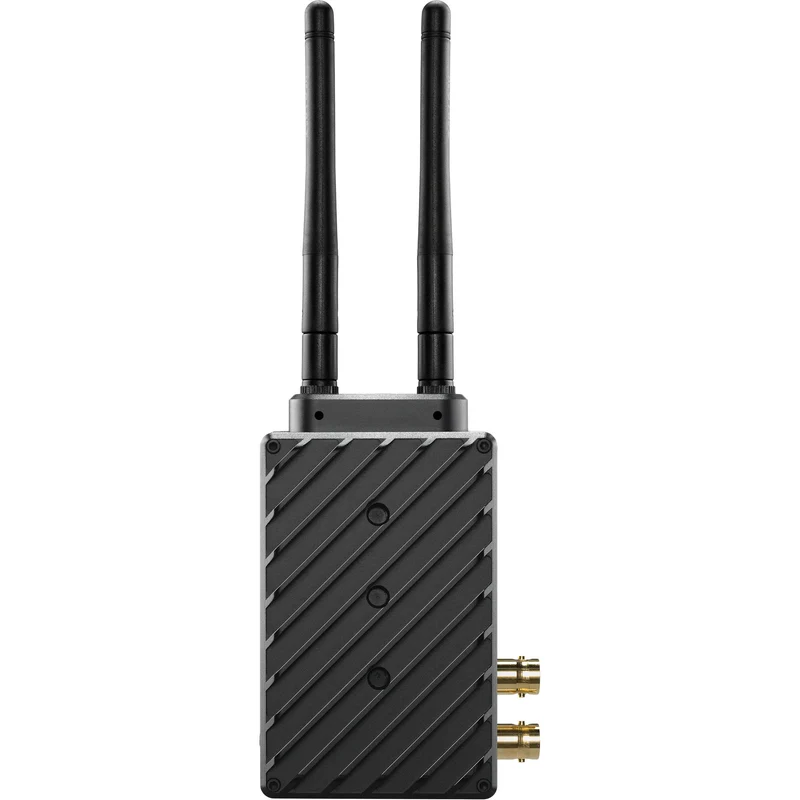

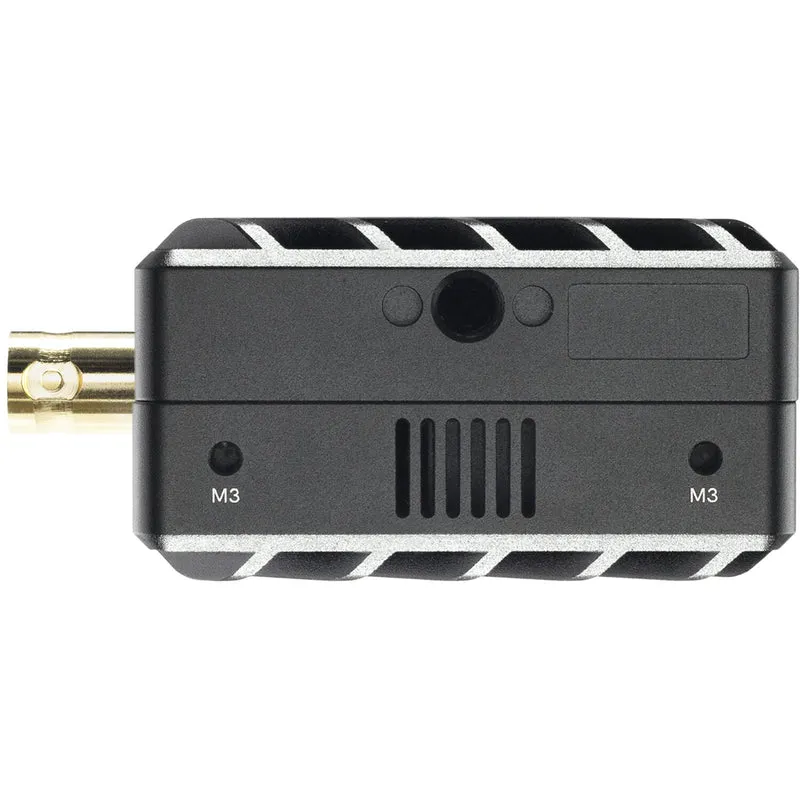

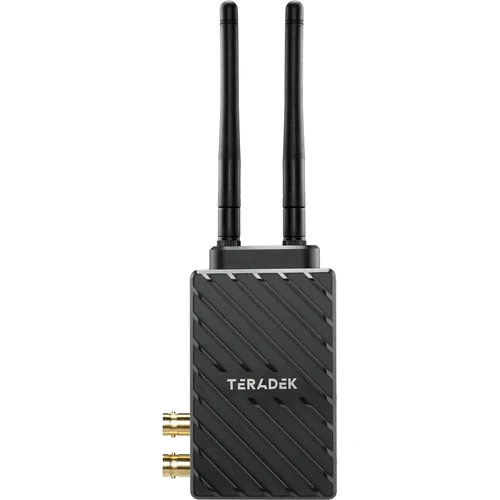

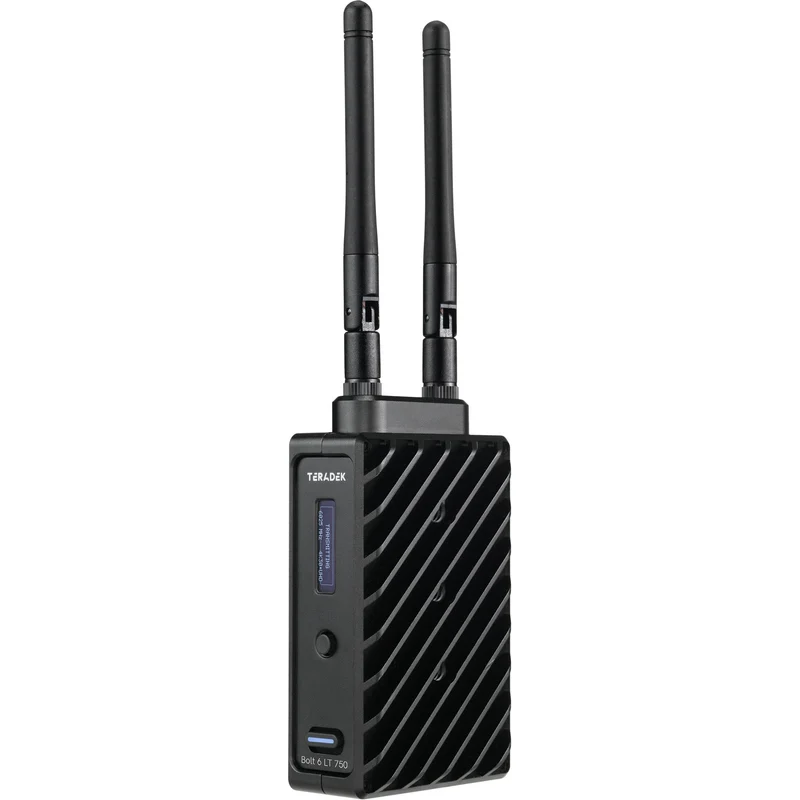

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter

Product Features

• Supports New 6 GHz Frequency Band
• Transmit Video up to 750' Line of Sight
• 3G-SDI and HDMI Input, SDI Output
• Transmit to up to 6 x RXs
• 10-Bit 4:2:2 HDR Support
• Compatible with all Bolt 4K 5G Devices
• AES-256 Encryption, 2 x Antennas
• Bluetooth Mobile App, Spectrum Analyzer

In the Box

• Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter
• 2-Pin to D-Tap Power Cable (18")
• USB 2.0 Type-A Male to Micro-USB Male Cable (39")
• HDMI Type A Male to HDMI Type A Male Cable (18")
• BNC to BNC SDI Cable (10")
• AC Adapter with Cable (6')
• 2 x Antenna

Overview

Bolt 6 LT 3G-SDI/HDMI TX
Bolt 6 LT TX is a wireless video transmitter that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
Bolt 6 LT TX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode.
The Transmitter is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

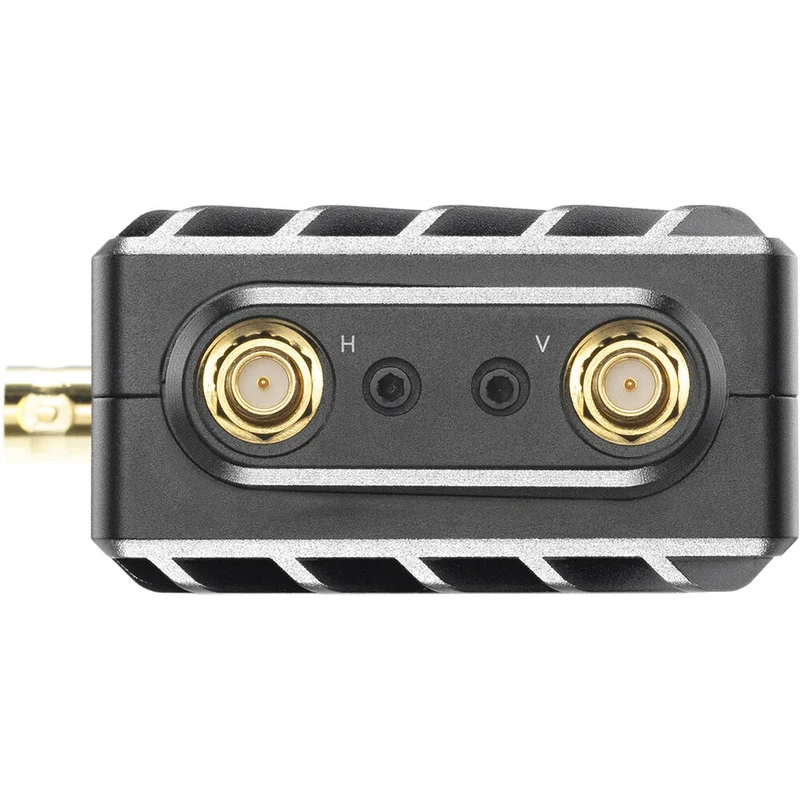

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.
Optionally, the 750 model of Bolt 6 LT TX can include permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.
