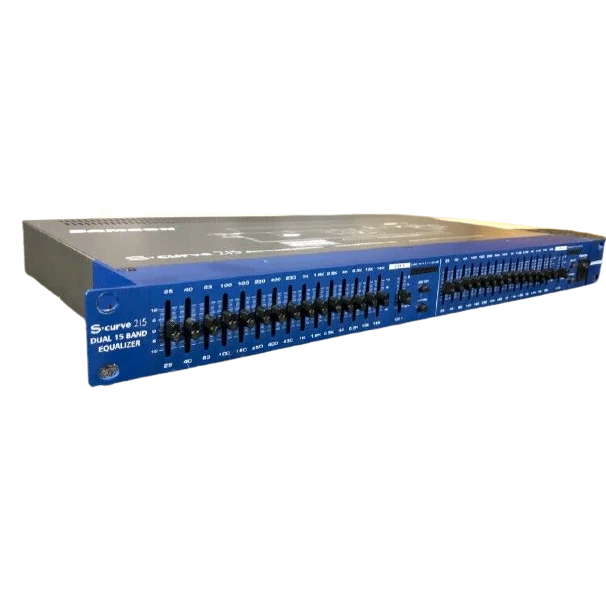

Samson S-Curve 215 Dual 15-Band, 2/3 Octave Graphic Equalizer - USED

S-curve 21 from Samson is a multi-purpose, constant Q dual fifteen-band graphic EQ, full featured with an easy-to-read lighted display and housed in a single rack space chassis.

The unit features low cut filters and bypass modes. Six-segment LED bar meters display the input level and balanced XLR and TRS inputs and outputs provide flexible connectivity.

• Dual channel, fifteen band per channel graphic equalizer with each frequency band representing 2/3 octave in the 25Hz to 16kHz range
• Dual channel operation for processing either a stereo signal or two independent monophonic signals
• 12dB of boost and cut for each of the frequency bands
• Switchable 80Hz low cut filter for removing rumble and floor noise
• Front panel hard-wired, relay controlled bypass switches (with dedicated bypass LEDs) allow the equalization circuitry and output level control to be activated or deactivated
• Level controls enable output signals to be attenuated or boosted for optimum signal-to-noise ratio
• Relay power-on circuitry prevents speaker "thumps" when the unit is turned on
• LED faders and LED bar VU meters
• Ultra-low noise circuitry ensures superb audio fidelity
• Electronically balanced XLR and TRS inputs and outputs
• Internal power supply ensures reliability and trouble-free operation
• All-steel chassis

Filter Type	Graphic, constant Q
Number of Channels	2
Inputs	2 x XLR 2 x 1/4" TRS phone
Outputs	2 x XLR 2 x 1/4" TRS phone
Maximum Input Level	Not specified by manufacturer
Frequency Bands	15 per channel
Bandwidth	2/3 octave
Range (Boost/Cut)	+/-12dB
Maximum Output Level	Not specified by manufacturer
Frequency Response	10Hz to 90kHz, +/-3dB
Dynamic Range	Not specified by manufacturer
Noise	-85dB
Dimensions (WxDxH)	19" x 10 1/2" x 1 3/4"
Weight	6.1 lbs
