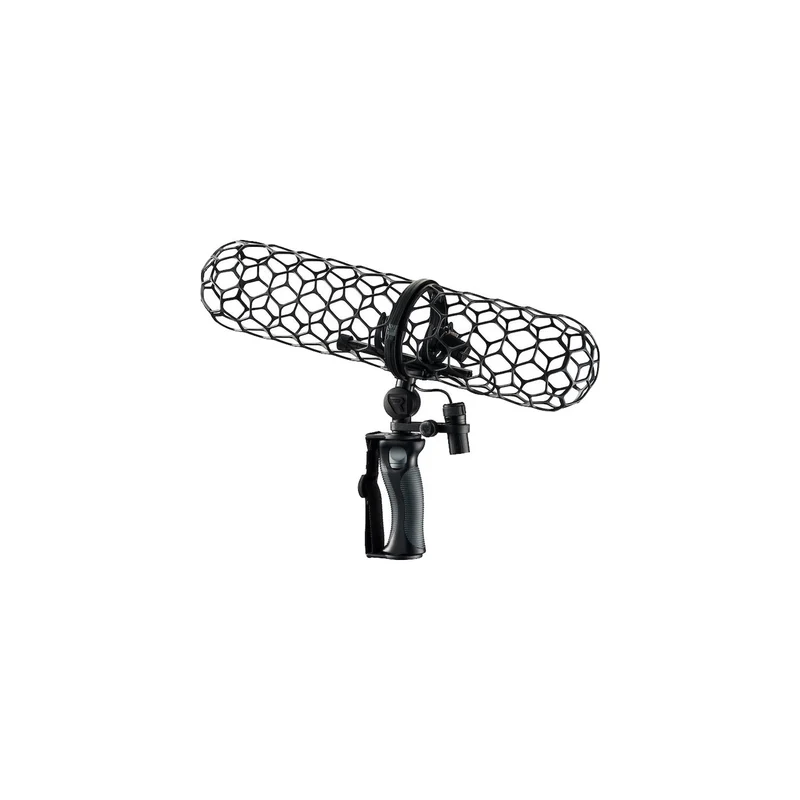

Rycote Nano Shield Kit NS5-DC

Product Features

• Complete Windshield & Suspension System
• Improved Acoustic Transparency
• 30% Lighter than Modular Windshield Kits
• Smaller than Modular Windshield Kits
• Mix-and-Match Basket Design
• Updated Lyre Mounts Lower Handling Noise
• Indoor and Outdoor Wind Protection
• Low-Profile XLR Cable
• Built-In RF Filter and Low-Cut Filter
• No Tools Required

In the Box

• Rycote Nano Shield Windshield Kit NS5-DC for Microphones up to 11.2" Long
• 2 x Windshield Basket Halves
• Mic Mounting Bar with Cable Clips
• Set of Lyre Mounts
• Swivel Arm Adapter for PCS Connections
• Swivel Arm Adapter for 3/8" Connections
• PCS Ergonomic Handle
• Low-Profile XLR Connection with Integrated Low-Cut Filter
• 360-Degree Adjustable and Reversible XLR Holder
• Windjammer
• Protective Case

Overview

RYCOTE Nano Shield kit NS5-DC
The Nano Shield offers an enhanced level of wind protection paired with improved acoustic transparency. The kits are smaller and on average weigh 30% lighter than Modular Windshield kits. The advanced Lyre mounts are also more compliant and offer better handling noise reduction. Overall the Nano Shield kits raise the bar for performance and versatility.
The Nano Shield kits use a unique magnetic locking basket design which can be configured to fit various microphone sizes by simply swapping out basket halves. Each size of basket half can interlock with any other size. They also have two manual locking sliders to hold everything secure and noise free. Quickly and easily access mics by simply pulling the halves apart.
The Nano Shield kits are on average 30% lighter than standard kits and have a smaller footprint when used with the same microphones. The basket shell is made from semi-rigid material that combines strength with flexibility. Layers of extra wind shielding can easily be added as you move from indoors to outdoors.
Rycote has advanced our patented Lyre mount and redesigned them specifically for the Nano Shield kits. While the basic shape might look similar, the material, thickness, center of gravity and mechanical properties have been engineered to provide a more compliant handling response in the direction the microphone is pointing whilst giving more stability in other directions to prevent mics from 'bottoming-out' or moving side-to-side.
The Lyre mounts and mounting bar on the Nano Shield can be adjusted, repositioned or swapped out by loosening / tightening the thumbwheel attached to the bar. Likewise, the swivel arm can be repositioned by loosening the friction braking wheel with interchangeable adaptors for an integrated PCS tip or 3/8" thread.
Kits come supplied with low-profile XLR cables that have both an active in-line RF filter and switchable 80Hz low cut (requires phantom power).
