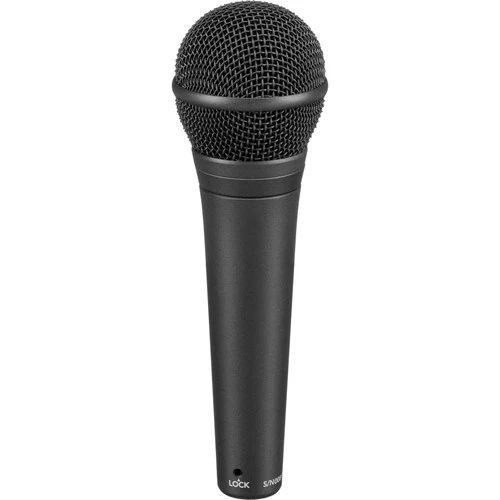

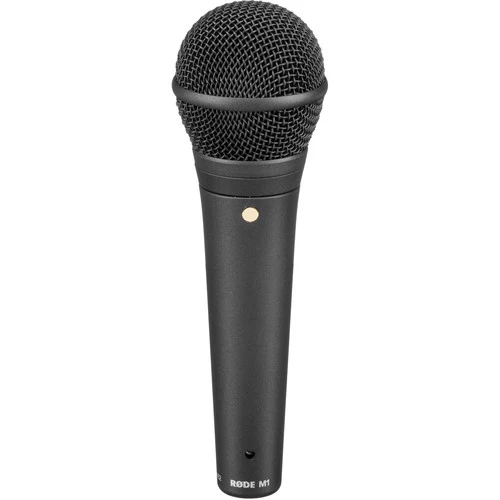

Rode M1 Handheld Cardioid Dynamic Microphone #2402

The Rode M1 is a handheld cardioid dynamic microphone designed for reliable reproduction of vocals, speech, guitars, and drums in concert venues, houses of worship, and live stage applications. Its dynamic element utilizes a neodymium magnet for high output without excessive preamp gain and delivers a frequency response of 75 Hz to 18 kHz. The resulting tone is smooth and defined with a mild bump at 200 Hz and a gentle rise from 4 to 10 kHz.

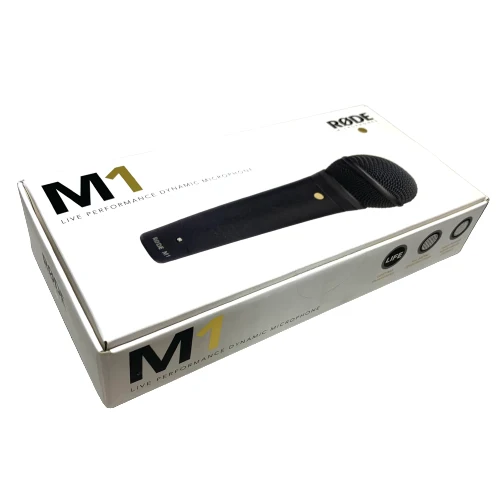

The cardioid polar pattern excels at rejecting sound at its off-axis points, yielding enhanced immunity to feedback. The balanced, low-impedance output and low handling noise maintain signal integrity, and the durable, all-metal construction delivers tour-worthy toughness. The M1's gold-plated XLR 3-pin output ensures high conductivity and compatibility with most microphone preamps. It ships with a microphone clip and a padded zip pouch.

• All-metal construction designed to handle touring
• Cardioid polar pattern minimizes off-axis noise and feedback
• Dynamic capsule maximizes headroom
• Gold-plated XLR 3-pin connector resists tarnish and maximizes conductivity
• Designed and manufactured in Australia

Form Factor	Handheld
Sound Field	Mono
Operating Principle	Pressure Gradient
Capsule	Dynamic
Polar Pattern	Cardioid
Circuitry	Solid-State
Pad	None
High-Pass Filter	None

Performance

Frequency Range	75 Hz to 18 kHz
Impedance	320 Ohms
Sensitivity	-56 dB at 1 kHz

Connectivity

Output Connectors (Analog)

1 x XLR 3-Pin

Physical

Dimensions	ø: 2.03 x L: 6.73" / ø: 51.5 x L: 171 mm
Weight	12.7 oz / 360 g

Packaging Info

Package Weight	1.55 lb
Box Dimensions (LxWxH)	8.4 x 3.5 x 3.4"
