Reloop RMX-40 BlackFire 4-Channel Analog Mixer with DSP #2604 - DEMO

Reloop RMX-40 BlackFire 4-Channel Analog Mixer with DSP is designed for live sound reinforcement applications. The mixer features four channels with 3-band equalizers and two microphone input channels with 3-band equalizers. The unit includes an automatic beat counter for all channels, and a time and depth parameter controllable DSP effect send and return system featuring Pan, Trans, Delay, Echo, Flanger, Filter, Phase, and Pitch Shifter. Combined with the beat counter, the effect parameters can be assigned to different timings or they can be modulated manually with the time and a level/depth control knobs

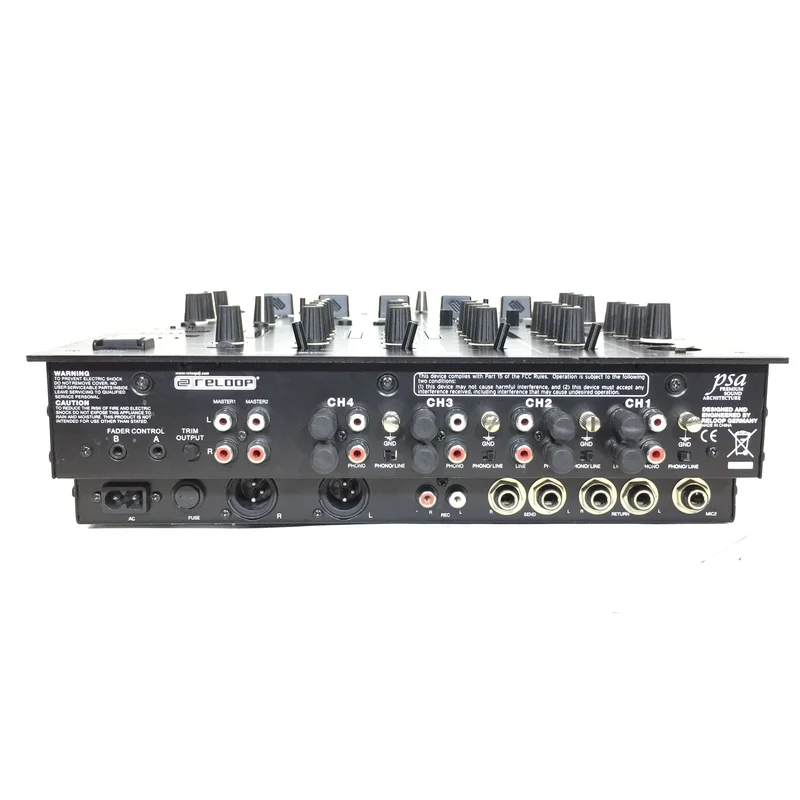

The mixer incorporate a freely assignable long life TCT 45mm crossfader with an adjustable curve. The crossfader can control every input channel, activate sources via fader start and cut all frequencies via the kill switches Each channel features an LED cue light, RCA line and phono inputs with ground, a 1/4" microphone input, an XLR microphone input with talkover, 1/4" send and return connectors, an unbalanced RCA rec out,unbalanced RCA pairs master 1 and master 2 out, as well as a balanced XLR pair master out. The headphone output features both an equalizer and mono switch.

• 4+1 channel Pro DSP club mixer
• Freely assignable DSP effect unit (Pan, Trans, Delay, Echo, Flanger, Filter, Phase, Pitch Shifter) with time and level parameter
• Manual beat assignment for effects
• Automatic beat counter for all channels (double 3-digit display)
• Excellent sound characteristics due to Premium Sound Architecture (PSA)
• Freely assignable Long Life TCT crossfader (45mm) with adjustable curve
• Crossfader start play
• Long life linefaders (60mm) with adjustable curve, reversible
• Kill unit for both crossfader channels, with flash function (up to -40 dB)
• Effect send/return for all channels
• Extra LED for cue signal per channel
• 3-band equalizer for channels 1 to 4 and mic 2
• 3-band equalizer for talkover and mic 1
• 1-band equalizer and mono/stereo switch for headphones
• Master output mono compatible, with balance
• Symmetrical (XLR) as well as asymmetrical (RCA) outputs

Key Features

• Assignable DSP Effects
• Time and Depth DSP Control
• Effects Send and Return
• 3-Band Equalizer
• Automatic Beat Counter
• Balanced XLR Outputs
• Unbalanced RCA Outputs
• Kill Switches On All Channels
• LED For Cue per Channel
• Headphone Output With Equalizer

Inputs	4 x phono (pair) 4 x line (pair) 1 x 1/4" return (pair) 1 x 1/4" mic 1 x XLR mic
Input Impedances	Phono: 2 mV at 47 kΩ Line: 200 mV at 20 kΩ DJ Mic: 2 mV at 1,000 Ω Mic 2: 1 mV at 2.2 kΩ Return: 316 mV at 22 kΩ
Outputs	2 x XLR Master, 1 x RCA Master 1 (pair) 1 x RCA Master 2 (pair) 1 x RCA Rec out (pair) 1 x 1/4" send (pair)
Output Impedances	Master 1 and 2 (unbalanced): 1 V at 1,000 Ω Master 1 (balanced: 1.23 V at 600 Ω Headphones: 891 mV at 33 Ω Rec: 316 mV at 1 kΩ Send: 316 mV at 2 kΩ
Frequency Response	20 to 20,000 Hz
Frequency	High Peak/Low Peak: +12/-26 dB Suppression Talkover: -14 dB
Distortion	< 0.01%
S/N Ratio	Phono: 71 dB Line: 86 dB (effects off) DJ Mic: 71 dB Mic 2: 65 dB
Dimensions	12.6 x 14.1 x 3.5" (320.0 x 357.0 x 89.0 mm)
Weight	13.2 lb (6.0 kg)

Packaging Info

Package Weight	14.6 lb
Box Dimensions (LxWxH)	17.9 x 16 x 5.6"
