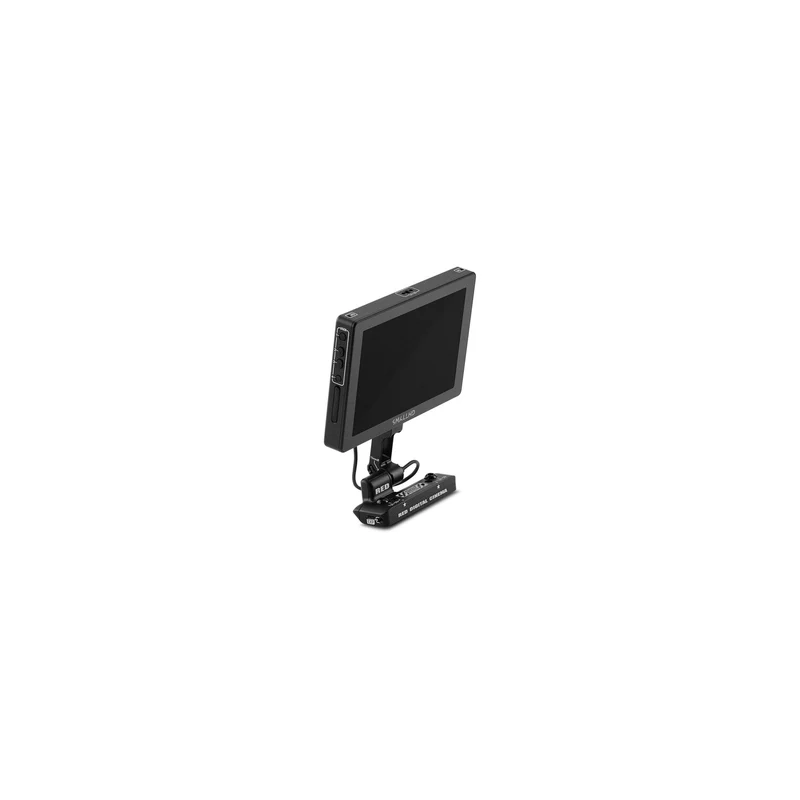

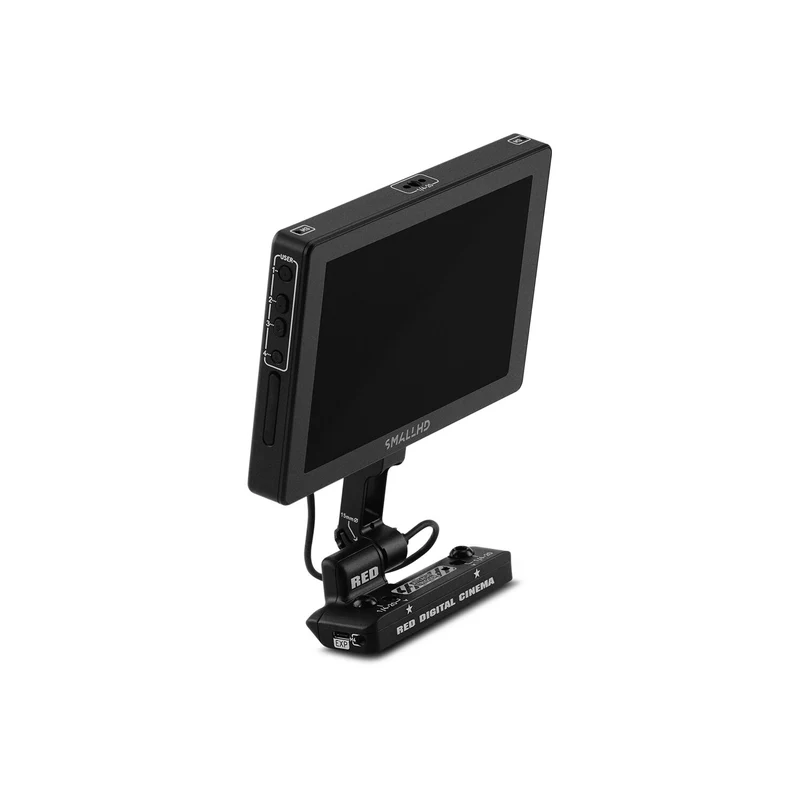

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge

Product Features

• 7.0" Daylight-Viewable LCD, 322 ppi
• 1920 x 1200 Resolution, 1250:1 Contrast
• 180° Rotation, 1300 cd/m² Brightness
• Touchscreen Camera Control
• Wide 100% DCI-P3 Color Gamut
• SmallHD PageOS Software
• Pogo Connection for Video/Power
• Locking USB Type-C Video/Power Cable
• Side-Mounted Navigation Buttons
• For DSMC3 Cameras Only

In the Box

• RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter
• Right-Angle Mounting Bracket
• 2 x 1/4"-20 Mounting Screw

Overview

The DSMC3 RED® Touch 7.0" LCD offers an HD viewing experience for recording and viewing footage on the V-RAPTOR™ camera system. A 1920 x 1200 resolution display panel with peak brightness of 1300 nits and high pixel density (at 322 ppi), not only provides the optimal experience when viewing footage, but also features 100% DCI-P31 Color Gamut coverage for tremendous color accuracy. The monitor also features full control over the camera via the new responsive menu system powered by SmallHD PageOS, bringing features like Waveform, Vectorscope, Histogram, False Color, Color Picker, Pixel Zoom & more.

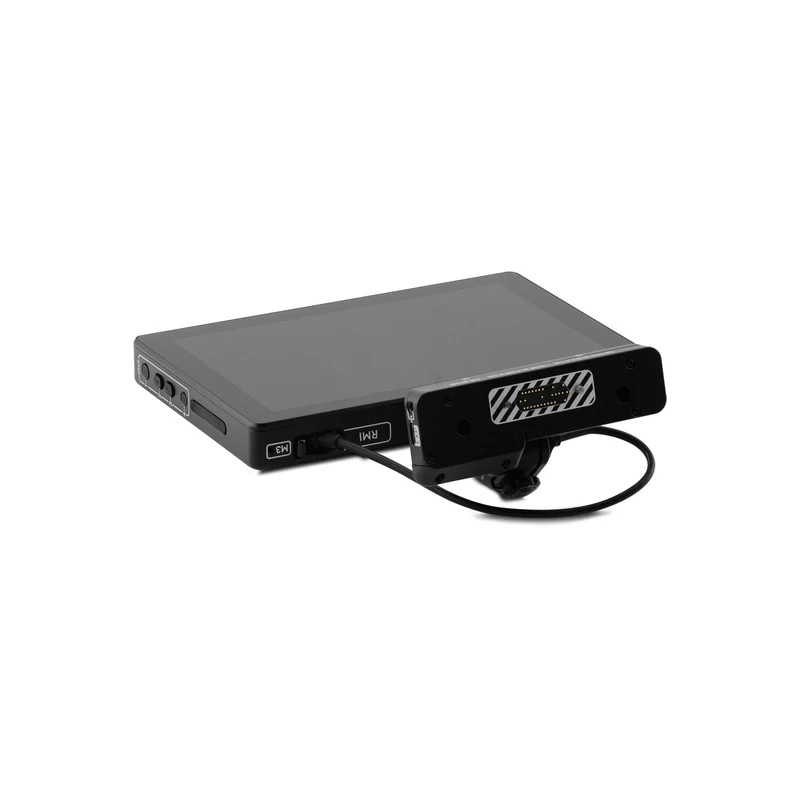

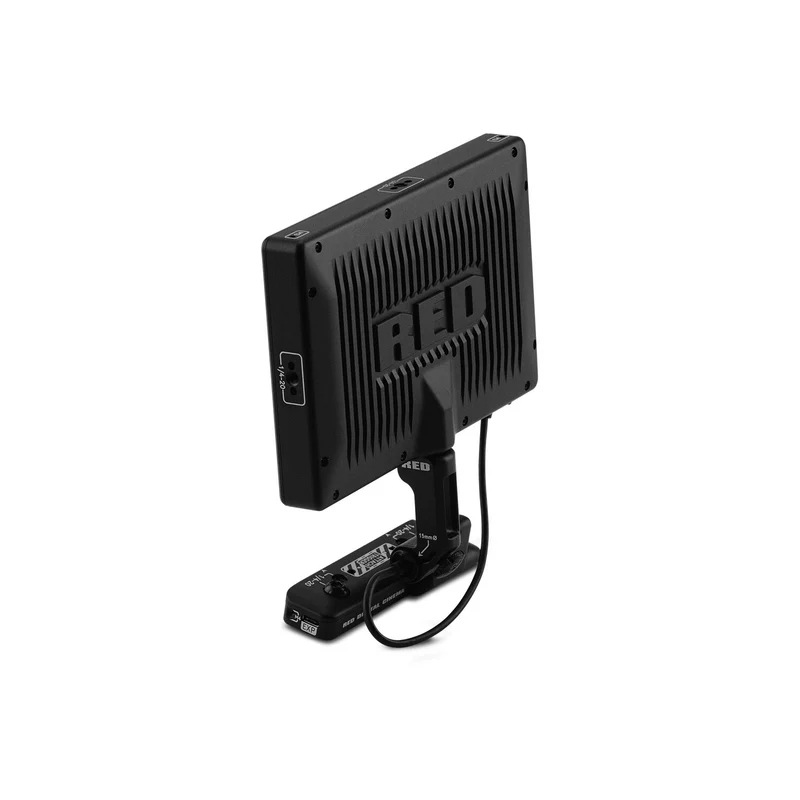

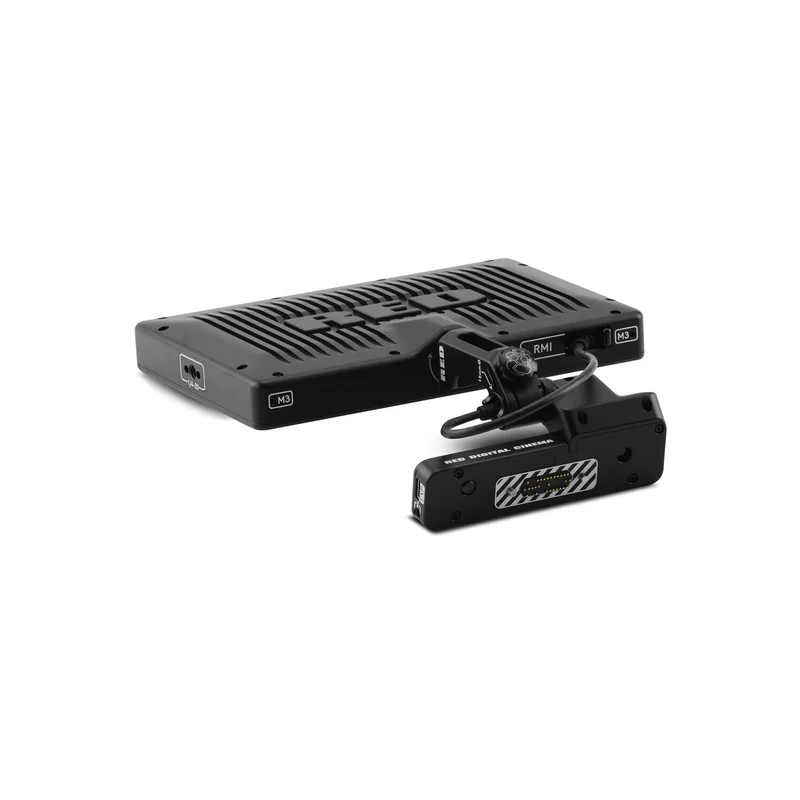

The lightweight display features a removable integrated tilt arm with the capability to rotate 180 degrees for versatile mounting options. It also boasts the latest generation pogo pins to provide power and video to the monitor in addition to the ability to connect via a single-locking USB-C style DSMC3 RMI Cable for video and power. No additional SDI or power cables are needed.

COMPATIBILITY
The DSMC3 RED Touch 7.0" LCD is not compatible with DSMC®, DSMC2®, RED RANGER® or KOMODO® camera systems.
