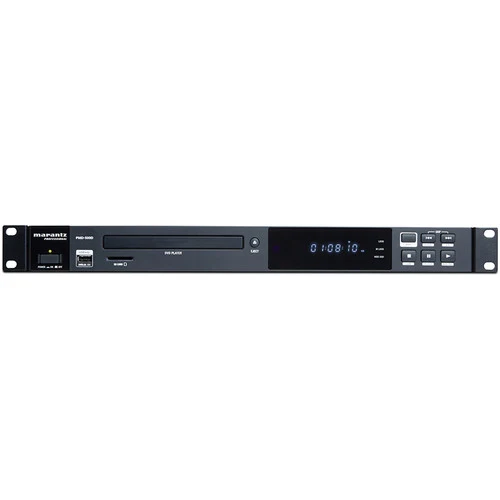

Marantz Professional PMD-500D Media Player for DVD Disc, SD/SDHC, & USB - DEMO

PMD-500D Media Player from Marantz Professional is for use with the DVD Disc, SD/SDHC, & USB. It has the ability to play several media formats paired with multiple audio/video output configurations and RS-232C control. Its operational settings are saved even after a power recycle, and settings such as Power-on-Play and front panel/IR remote locks enable automatic operation. Furthermore, the media player features HDMI, component, and composite video output.

• HDMI, component, and composite video output
• Balanced and unbalanced audio output
• Playback files from SD/SDHC and USB
• OSD hiding mode
• RS-232C control
• Panel lock and IR remote lock functions

Playable Media	DVD/DVD+/- R/RW/DVD audio CD/CD-R/RW/HDCD/DTS-CD/SVCD/VCD
Playable File Formats	AV: AVI/MPG/3GP/ASF/DAT/DivX/MP4/WM Picture: JPG Subtitle: SRT/SUB/SMI/SSA Audio: MP3/WAV
Video Codecs	MPEG1, MPG2, MPG4, DivX 3/4/6, Xvid
Audio Codecs	Dolby Digital, AAC, WMA
Audio Channels	2-channel stereo
Frequency Response	10 to 20,000 Hz ±1.0 dB
Ratio	Signal-to-Noise Ratio: >100 dB (1 kHz, 0 dB, A-weighted) Hum-to-Noise Ratio: Output (HPF 400 Hz On/Off)
Headroom	6 dB
Channel Separation	>90 dB (1 kHz, 0 dB, A-weighted)
Total Harmonic Distortion (THD)
Noise	Pop Noise: Audio output 50 mV @ 100 kOhms
Input	USB Type-A, USB 2.0 / FAT32 SD/SDHC Ver 2.0 FAT32
Output	Analog Audio RCA (unbalanced), 2.0 Vrms XLR (balanced), 4 dBU Digital Audio Coaxial RCA, 0.5 V p-p @ 75 Ohms / signal format AES/EBU Optical TOSLINK, -21 dBm to -15 dBm (660 nm ±30 nm) HDMI Output: HDMI 1.3 Component Y: 1.0 V p-p/750 Component Pb/Pr: 0.7 V p-p/750 Composite Video: 1.0 V p-p/75
Remote Control	Infrared protocol, NEC format Transmit output level > 200 mV p-p
Serial	D-sub 9-pin female RS-232C Full duplex mode Baud rate 9600/38400 b/s (selectable in the menu) Data 8-bit Start bit 1-bit Stop bit 1-bit Parity - none Flow control - none
Environmental	Operating Temperature: 40 to 95°F (5 to 35°C) Operating Humidity: 25 to 85% non-condensing
Power Requirement	100 to 230 VAC
Rackmountable	Yes, Rack Ears must be installed on the unit (sold separately)
Dimensions	19 x 10.8 x 1.7" (48.2 x 27.4 x 4.3 cm)
Weight	6.11 lb (2.77 kg)

Packaging Info

Package Weight	8.55 lb
Box Dimensions (LxWxH)	20.7 x 14.7 x 4.9"
