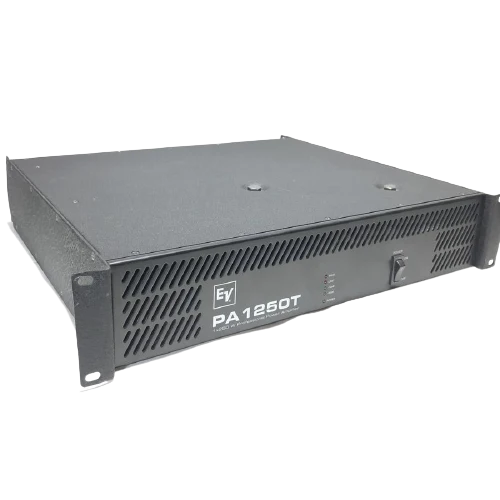

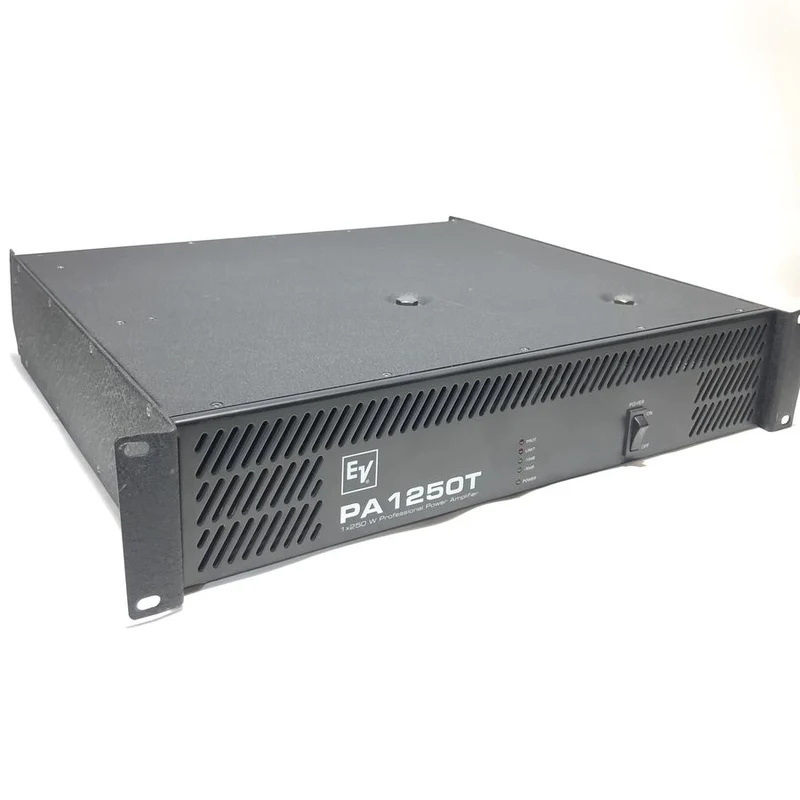

Electro-Voice PA1250T Rackmount 250W Mono Power Amplifier (50V/70V/100V) #2177 - USED

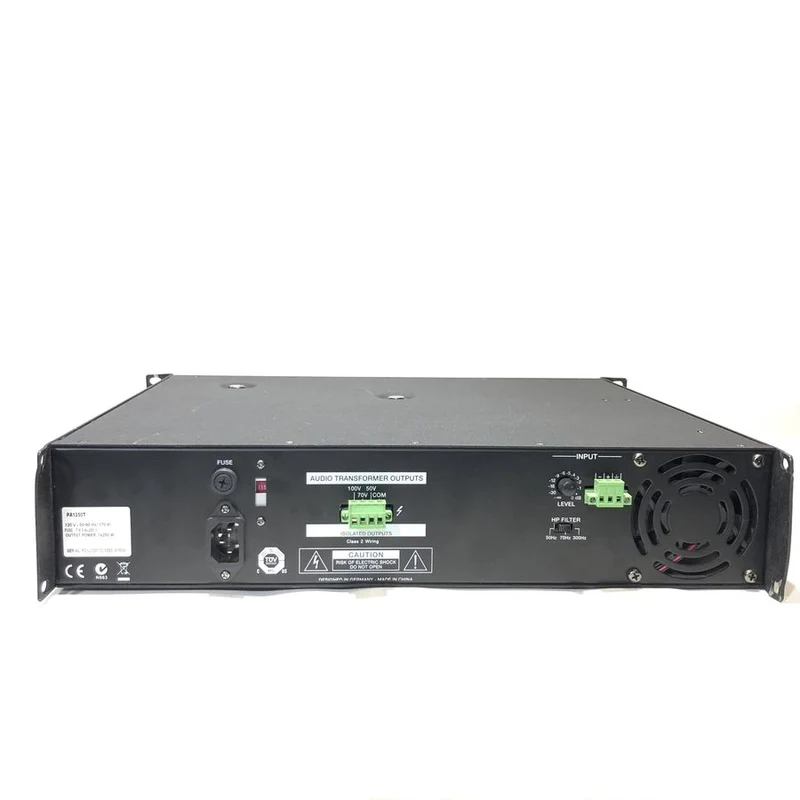

Electro-Voice PA1250T is a rackmount 250W mono power amplifier with a high-performance output transformer ideal for 50V/70V/100V systems in schools, houses of worship, retail spaces, offices, and more. This single-channel amplifier has a simple, easy-to-use interface with the power switch and indicator LEDs on the front panel, while the stepped level control and switch for the selectable 50/70/300 Hz high-pass filter are on the rear. Euroblock input and output connectors are utilized for quick and easy setup.

Comprehensive protection circuitry protects your amplifier from damage caused by overheating, overloads, and short-circuit issues. The output has a delayed connection at power-up to prevent damage to your speakers. Variable-speed fans and a flow-through-chassis design direct airflow from front to rear, and keep the amplifier cool and running smoothly. Integrated rack ears allow direct mounting of the 2 RU enclosure in a standard 19" equipment rack.

• Rugged rack-mountable 2 RU housing with integrated rack ears
• 250W rated output power with low noise and distortion
• Euroblock Phoenix-type input and output connectors
• Rear-panel volume control
• Selectable high-pass filter
• Front-to-rear airflow for reliable operation
• Protection circuitry for overheating, audio limiting, delayed output connection at power-up, and peak current limiting

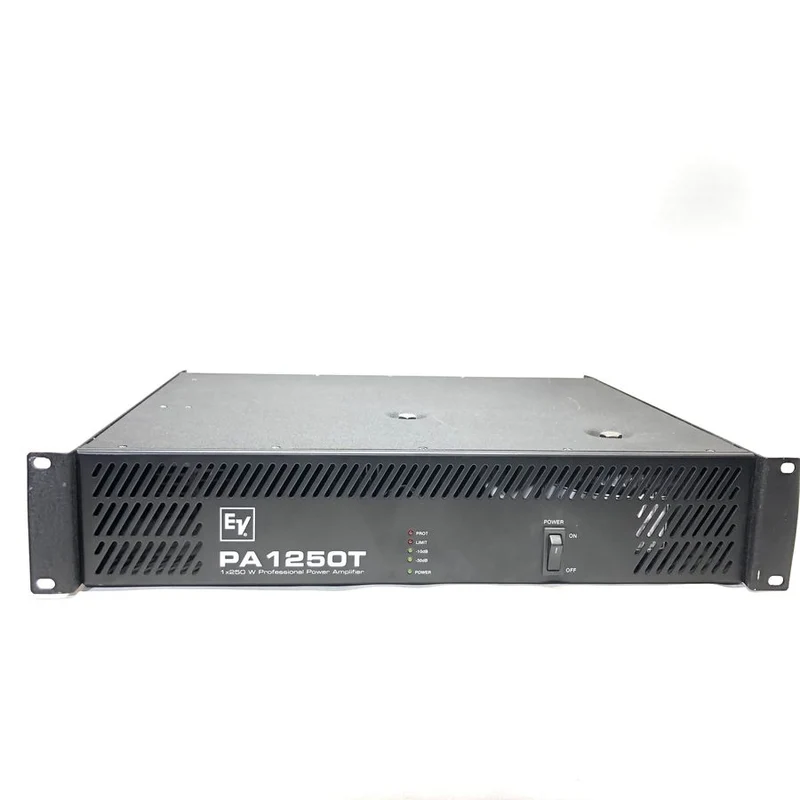

• Front-panel LEDs for power, signal, limit, and protect
• Voltage selector for international use

Power Amplifier

Number of Channels	1
Power Rating	250 W (Full Range, 0.2% THD)
Load Impedance / Voltage	50 / 70 / 100 V

Performance

Frequency Response	65 Hz to 40 kHz -1 dB
Input Sensitivity	775 mV / 0 dBu
Input Impedance	>20 Kilohms (Balanced)
Max Gain	36.2 dB (at 50 V) 39.1 dB (at 70 V) 42.2 dB (at 100 V)
Max Voltage Swing	At 50 V: 59 V RMS At 70 V: 82 V RMS At 100 V: 117 V RMS
SNR	103 dB
THD	<0.1%
Intermodulation Distortion	<0.1% (DIM 30) <0.1% (SMPTE)
Slew Rate	50 V: 29 V/μs 70 V: 41 V/μs 100 V: 61 V/μs

Signal Processing

Filters

1 x High-Pass

Connectivity

I/O	1 x Euroblock 3-Pin Input 1 x Euroblock 4-Pin Output

Power

AC Input Power	120 to 230 VAC, 50 / 60 Hz
Power Consumption	170 W (1/8 Power)

Physical

Display & Indicators	1 x Green LED (Power) 2 x Green LED (Signal) 1 x Red LED (Limit) 1 x Red LED (Protect)
Cooling	Fan (Variable Speed)
Dimensions	19.0 x 3.5 x 15.9" / 48.3 x 8.8 x 40.5 cm
Weight	36.3 lb / 16.5 kg

Packaging Info

Package Weight	42.5 lb
Box Dimensions (LxWxH)	23.5 x 23 x 7"
