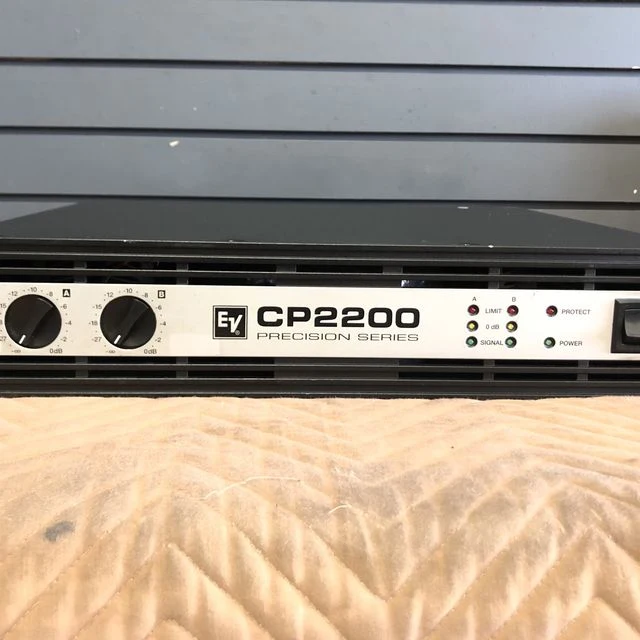

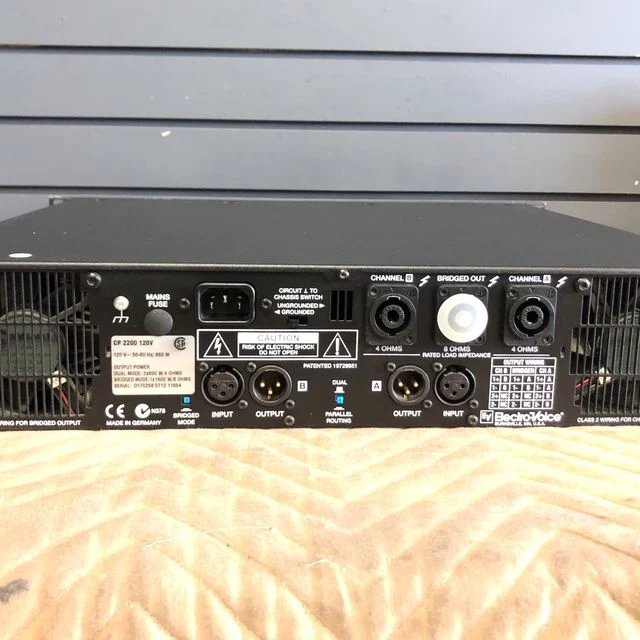

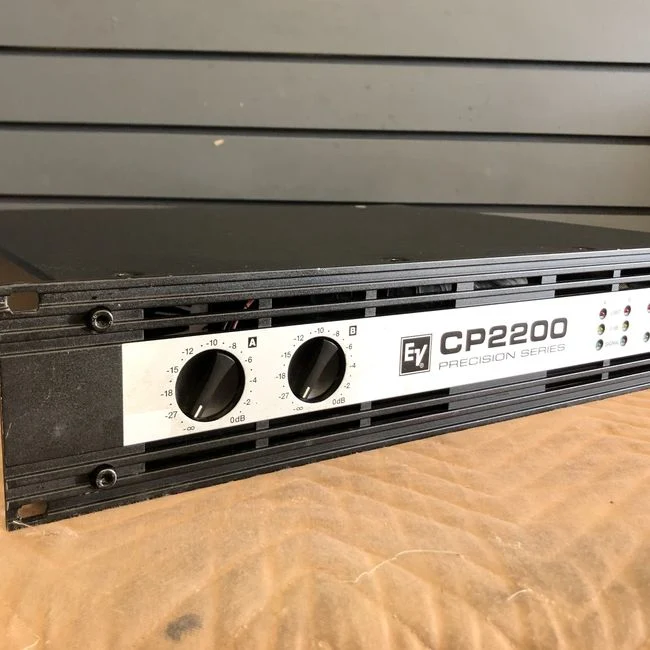

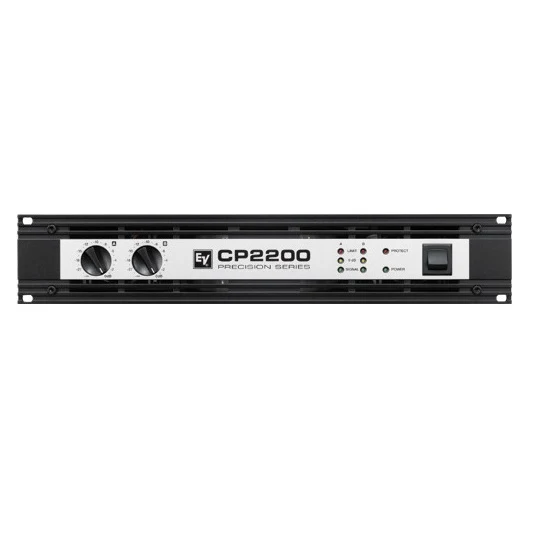

Electro-Voice CP2200 Two-Channel Rack-Mount Power Amplifier - USED

The Electro-Voice CP2200 is a 2-channel, 2U rack-mount power amplifier designed for the rigors of live touring, offering high efficiency and great quality sound. Three user-selectable performance modes are available - dual, parallel, and bridged. The amplifier features XLR input connectors and XLR and Speakon output connectors for connection to any professional sound system.

The CP2200 uses an optimized power supply with low-leakage toroidal transformers for outstanding audio performance with extensive headroom. Internal circuitry minimizes potential damage from electrical and thermal overload, short circuits, and HF/DC at the outputs. Other protection measures include back-EMF-protection, which prevents damage to the output resistors by electrical back-feed, an inrush current limiter, delayed connection of the outputs at power-up, and dual three-speed fans.

• 2U rack space 2-channel power amplifier with robust steel construction
• Dual, bridged, and parallel operating modes
• Capable of driving 2 ohm loads
• Efficient Class-H circuitry
• XLR input connectors and XLR and Speakon output connectors
• Optimized power supply with low-leakage toroidal transformers provides plenty of headroom, and contributes to a lighter weight and reduced power dissipation
• Wide range of internal protection, including overheating, overloads, short circuit, back-EMF protection, and inrush current limiting
• Ground-lift switch eliminates hum caused by ground loops
• Output connection is delayed at power-up to prevent damage to speakers and other components
• Front-panel level control knobs
• Front-panel LEDs for power, protect, signal, 0dB, and limit
• Dual 3-speed fans for front-to-rear cooling

Output Power	1100W @ 2Ω Stereo (per channel) 800W @ 4Ω Stereo (per channel) 500W @ 8Ω Stereo (per channel) 2200W @ 4Ω Bridged-Mono 1600W @ 8Ω Bridged-Mono
Damping Factor	> 300
Input Sensitivity	+4.7 dBu (1.33 V RMS)
Input Impedance	20 k ohms
Gain	32dB
Frequency Response	15Hz - 40kHz, +/-1dB
Signal-to-Noise Ratio	107dB (A-Weighted)
Total Harmonic Distortion (THD)
Input Connections	2 x XLR Female (Balanced)
Output Connectors	2 x XLR Male 3 x Neutrik Speakon Connectors
Controls Front Panel	1 x Power Switch 2 x Input Level Controls
Controls (Rear)	1 x Grounded/Ungrounded Switch 1 x Bridged Mode Switch 1 x Dual/Parallel Routing Switch
Indicators	2 x Red Limiter LEDs 2 x Yellow 0dB LEDs 2 x Green Signal Present LEDs 1 x Red Protection Circuitry LED 1 x Green Power LED
Cooling	3-Stage Fan Cooled, Front-to-Rear Airflow
Power Consumption	660W (1/8 Max Output Power @ 4 ohms)
Power Requirements	100 VAC, 120 VAC, 220 VAC, 240 VAC
Dimensions (WxHxD)	19 x 3.5 x 14.5" (483 x 88 x 369 mm)
Weight	35.2 lbs (16 kg)
Specialties	Comprehensive Protection Circuitry

Packaging Info

Box Dimensions (LxWxH)

22.5 x 20.4 x 7.9"
