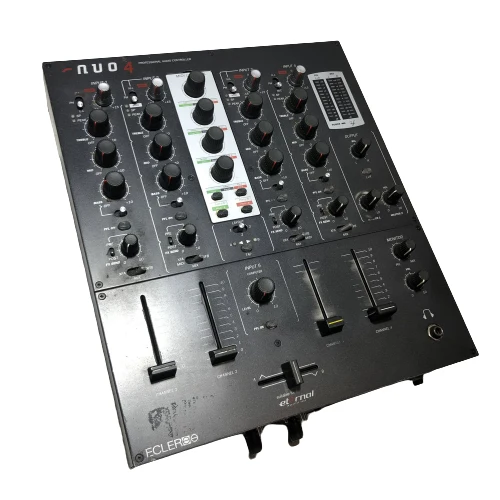

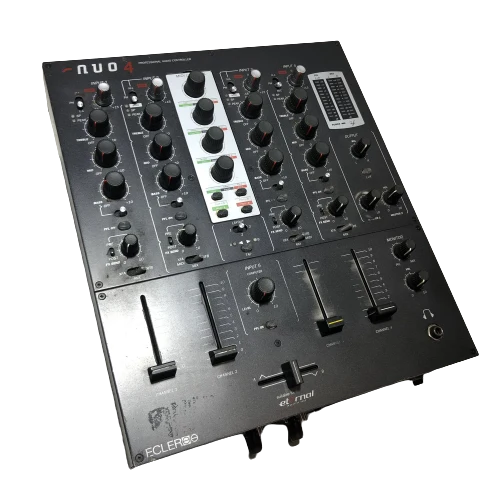

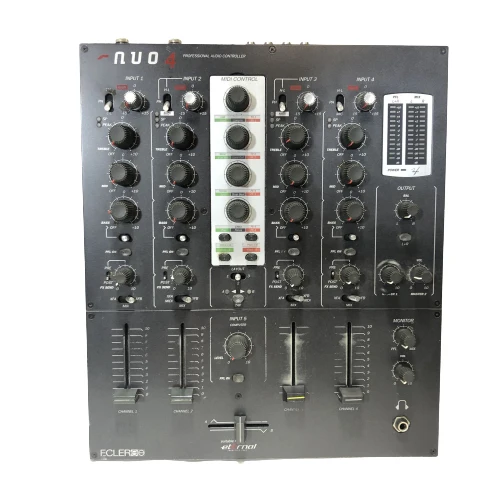

Ecler NUO 4.0 Professional 4-Channel DJ Mixer #2357 - USED

Ecler NUO 4.0 4-Channel DJ Mixer delivers professional audio quality and rugged components well suited for the professional mobile DJ, whether at home or in a nightclub DJ booth. Four channels feature 4 line inputs, 4 phono inputs and an XLR microphone input. The output section features balanced XLR and RCA outputs, as well as a dedicated record output, and effects send / return to external processors. A powerful 3-band EQ features full frequency cut, and there are curve controls for the channel and crossfaders.

• 4 mixing channels
• 4 Phono and 4 Line inputs
• 2 balanced XLR Microphone inputs
• Master output XLR and RCA
• Booth output RCA
• VU Meter per channel
• 3 band full cut EQ
• Extra large ergonomic EQ knobs
• FX Send control per channel
• FX Pre/Post fader selector
• Master FX Send, FX Return and FX PFL control
• Fully assignable crossfader
• 60mm long life VCA faders
• 45mm long life VCA crossfader

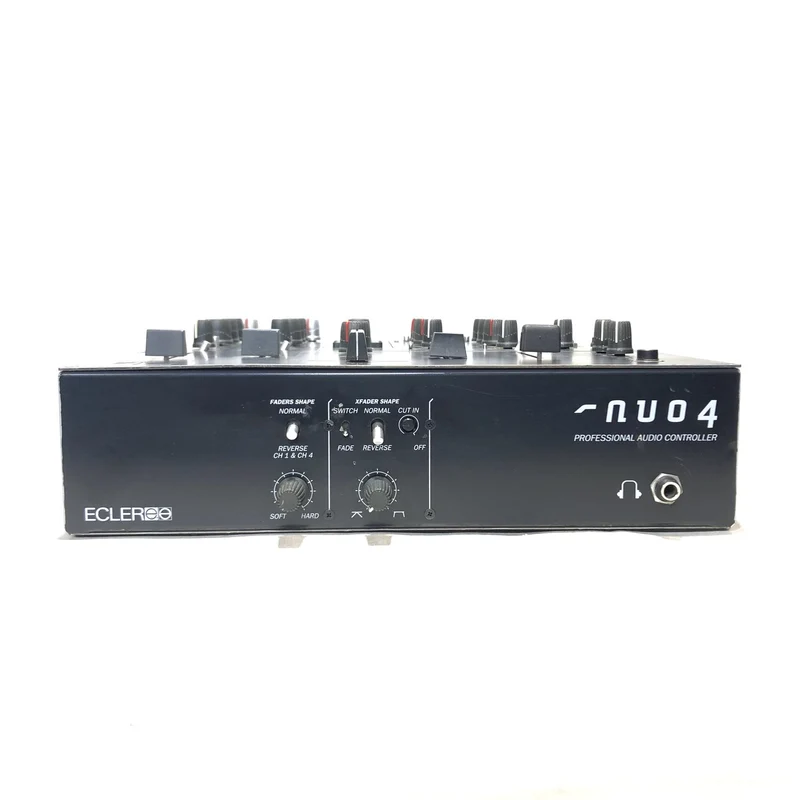

• Fader and crossfader shape adjustment
• Crossfader Reverse and Cut-In
• Crossfader suitable for ETERNAL

Total # Of Channels	Four

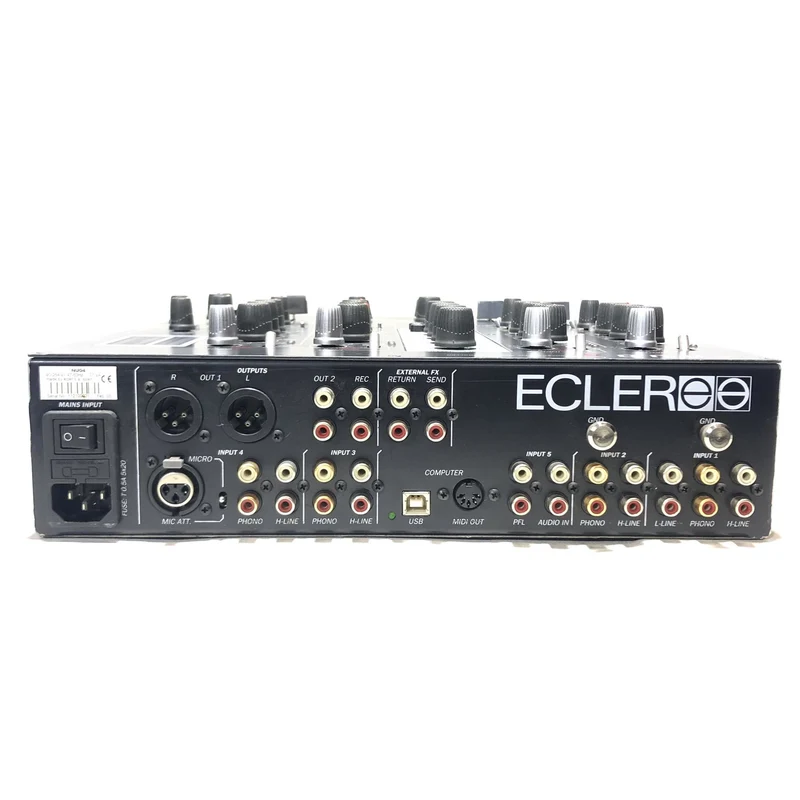

Input Connectors	CD/Line Input - RCA Phono x4 Turntable Input - RCA Phono x4 Microphone Input - XLR Return - RCA Phono
Output Connectors	Master Output - XLR x1 Master Output - RCA Phono x2 Booth - RCA Phono Send - RCA Phono Headphone - 1/4" TRS Phone
Signal to Noise Ratio	Line: >95dB Phono: >90dB Microphone: >85dB Return: >100dB Session: >100dB
Frequency Response	Line: 10Hz - 30kHz -1dB Phono: RIAA +/- 0.5dB (20Hz - 20kHz) Microphone: 10Hz - 25kHz -1dB

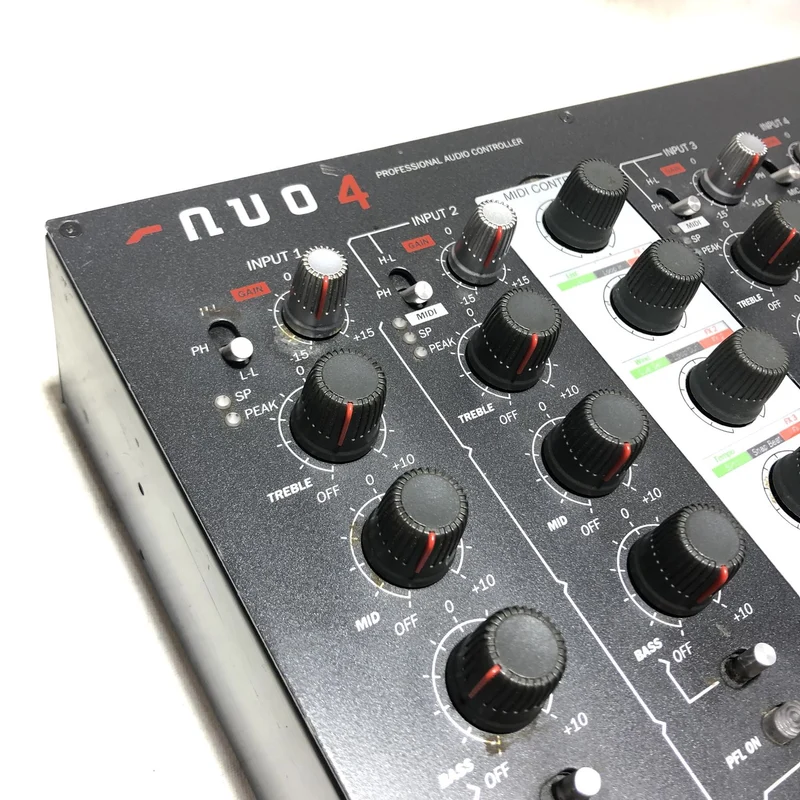

EQ Section	3-Band Full Cut BASS: -30/+10dB (200Hz) MID: -25/+10dB (200 & 6.5kHz) TREBLE: -30/+10dB (6.5kHz)
Power	Mains: 90-264VAC 47-63Hz Power consumption: 38VA
Dimensions (WxHxD)	12.59 x 14.56 x 3.14" (320 x 370 x 80mm)
Weight	10.58 lb (4.8kg)

Packaging Info

Package Weight	13.55 lb
Box Dimensions (LxWxH)	18.5 x 18.3 x 8.3"
