DOD 231 Series II Dual Channel 31-Band Graphic Equalizer #2228 - USED

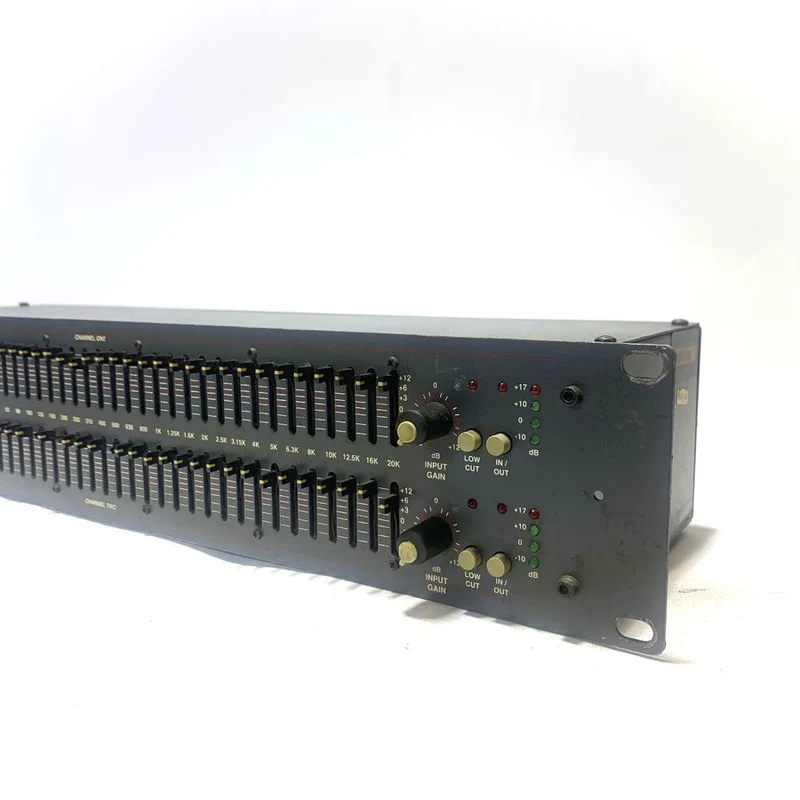

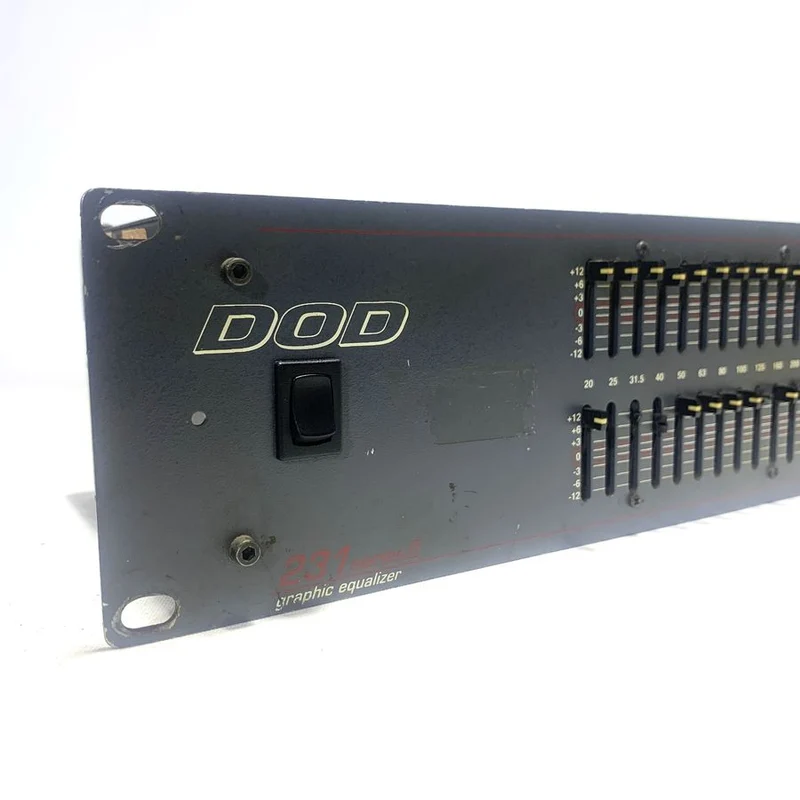

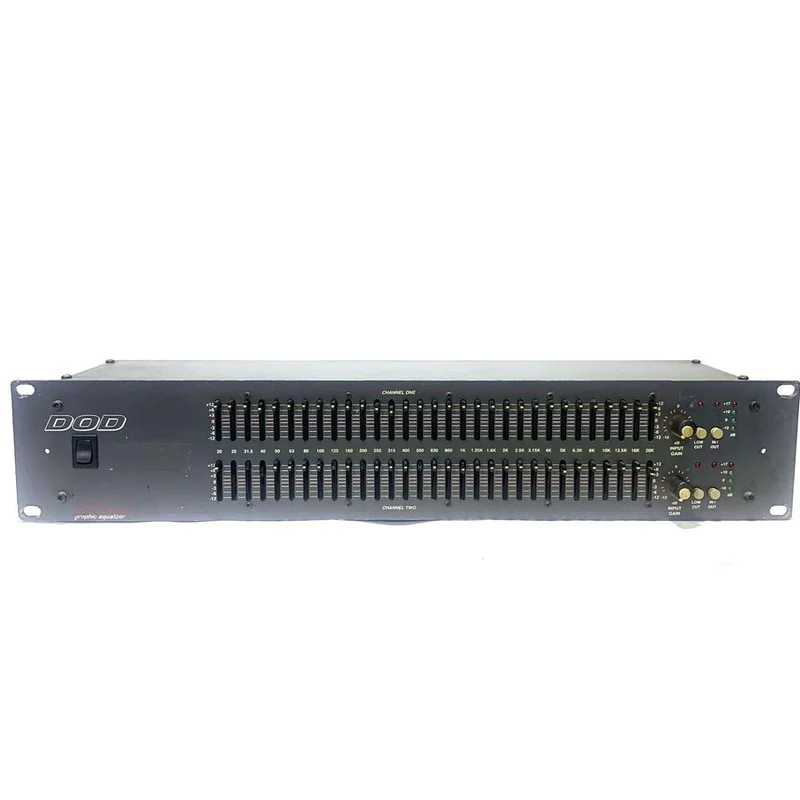

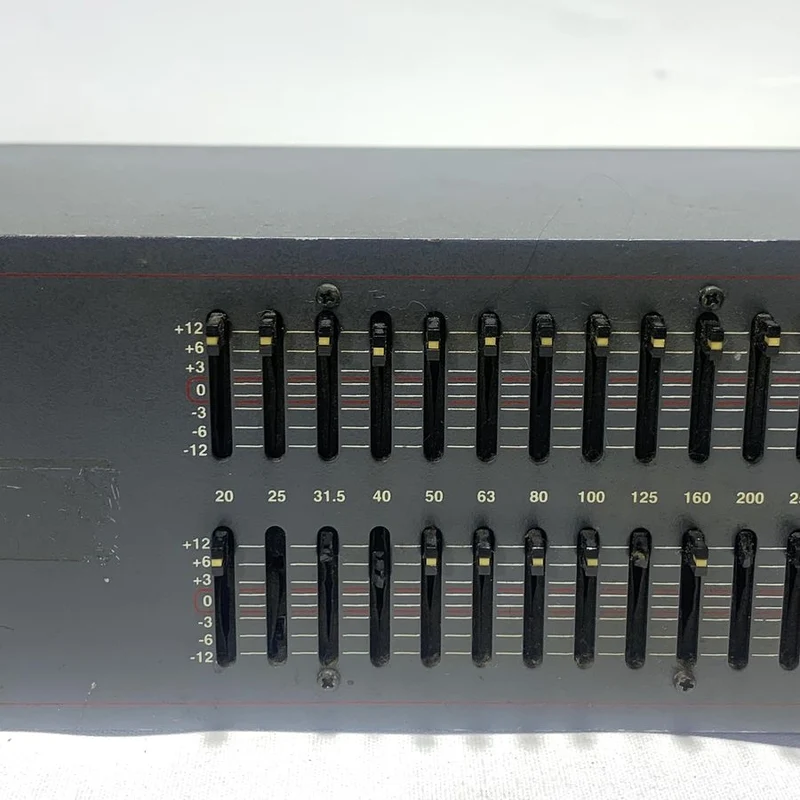

Note: This item has few sliders missing as shown in the pictures.

The 231 is a dual channel, 31 band 1/3 octave graphic equalizer which features constant Q circuitry, housed in a two space rack. The sliders are 45mm center detent, with 12 dB of boost and cut for each slider.

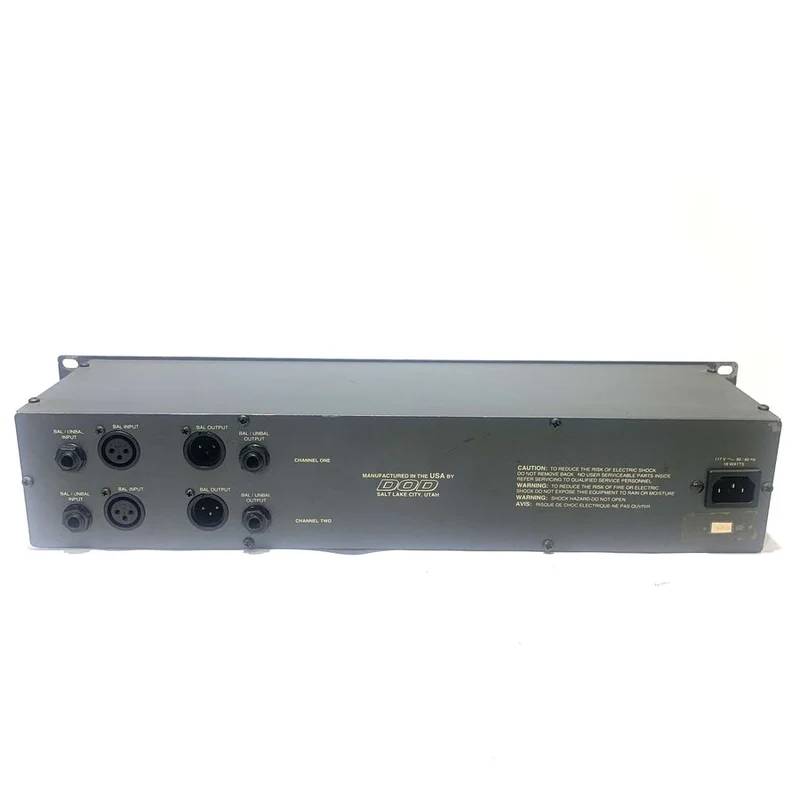

The unit provides active balanced input and output connections, high pass filters, bypass switches for each channel, and an internal power supply. Electronic switching of the bypass minimizes switching transients, such as loud pops or clicks when the switch is depressed. The 231 fully shielded internal transformer provides extremely quiet operation, and multiple input and output configurations are provided for ease of use. The XLR and 1/4" TRS connectors use active balanced, low noise circuitry, while the 1/4" connectors will also accept an unbalanced plug.

The input level control covers a wide range, thus allowing the unit to work with a variety of signal levels. Output levels can be monitored on each channel by four-LED peak-reading bar graphs. The 231 may be used in a variety of applications such as live sound, recording studios, instrument racks, as well as any conventional fixed installation environment.

• Dual channel 31 band 1/3 octave graphic equalizer
• Constant-Q filtering
• 45mm center detent sliders
• Low cut filters at 50Hz with a 12dB/Octave Slope
• Variable input level controls

Filter Type	Graphic
Number of Channels	2
Maximum Input Level	+21dB
Frequency Bands	31 x 2, ISO spacing
Bandwidth	1/3 octave
Range (Boost/Cut)	+/-12dB selectable
Maximum Output Level	+21dBu
Frequency Response	20Hz to 20kHz
Dynamic Range	Not specified by manufacturer
Noise	-92dB
Dimensions	2U rack, 6" deep
Specialties	Front-panel bypass switch utilizes electronic FET switching to avoid transients

Packaging Info

Package Weight	9.1 lb
Box Dimensions (LxWxH)	22 x 11.5 x 5"
