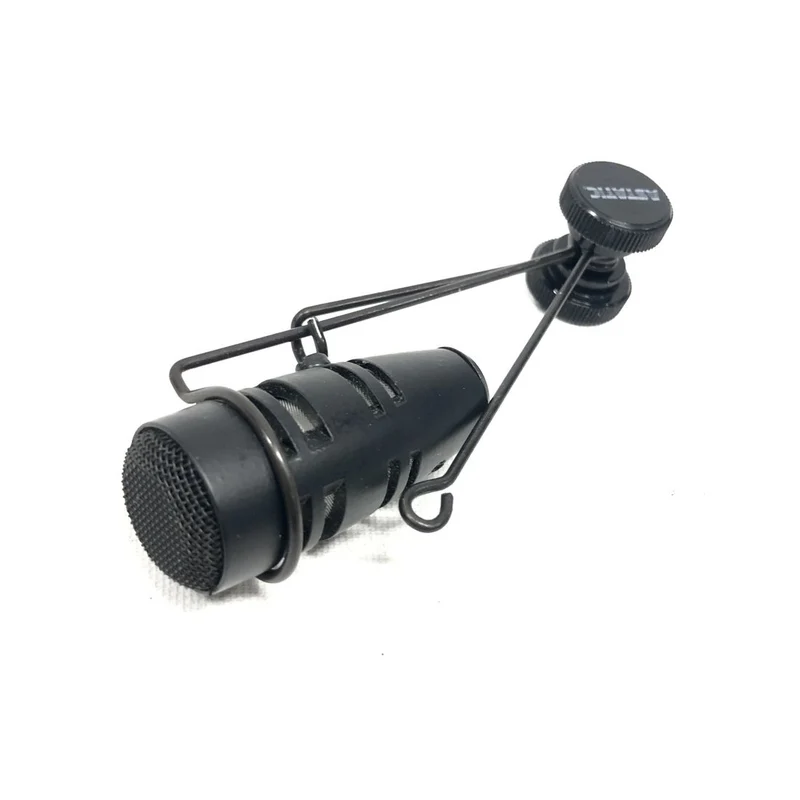

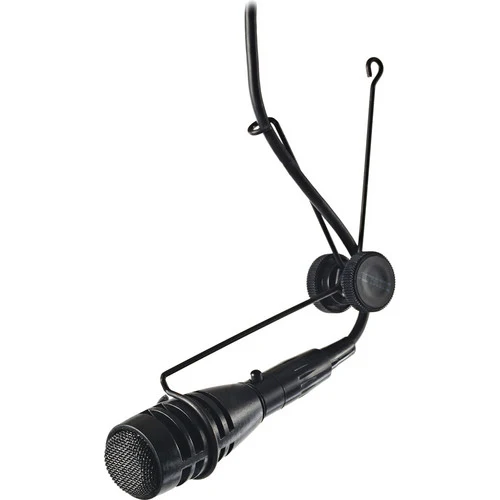

CAD Audio Astatic 1600VP Variable Pattern Hanging Microphone - DEMO

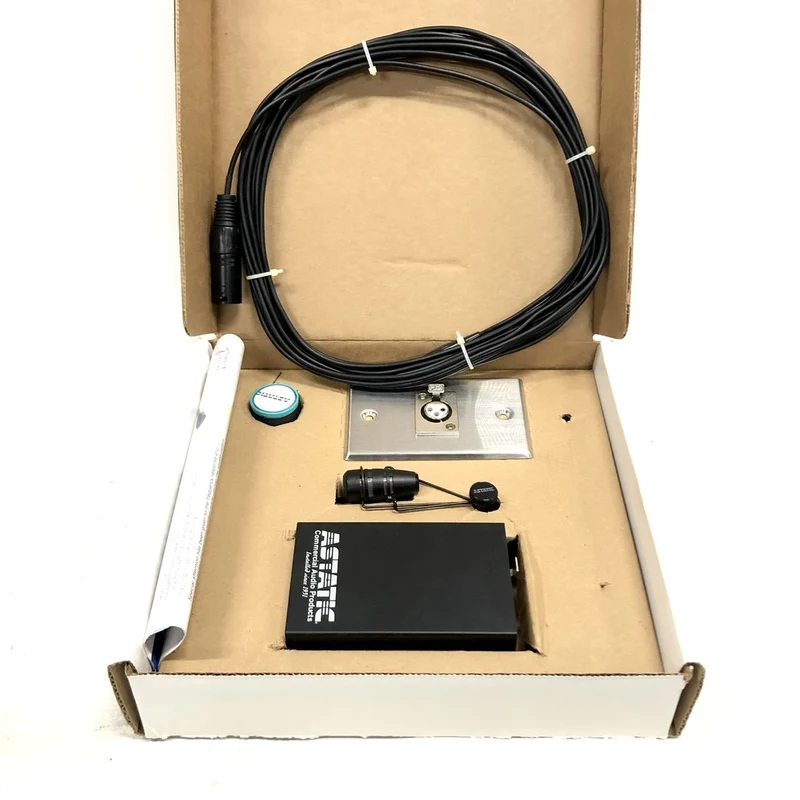

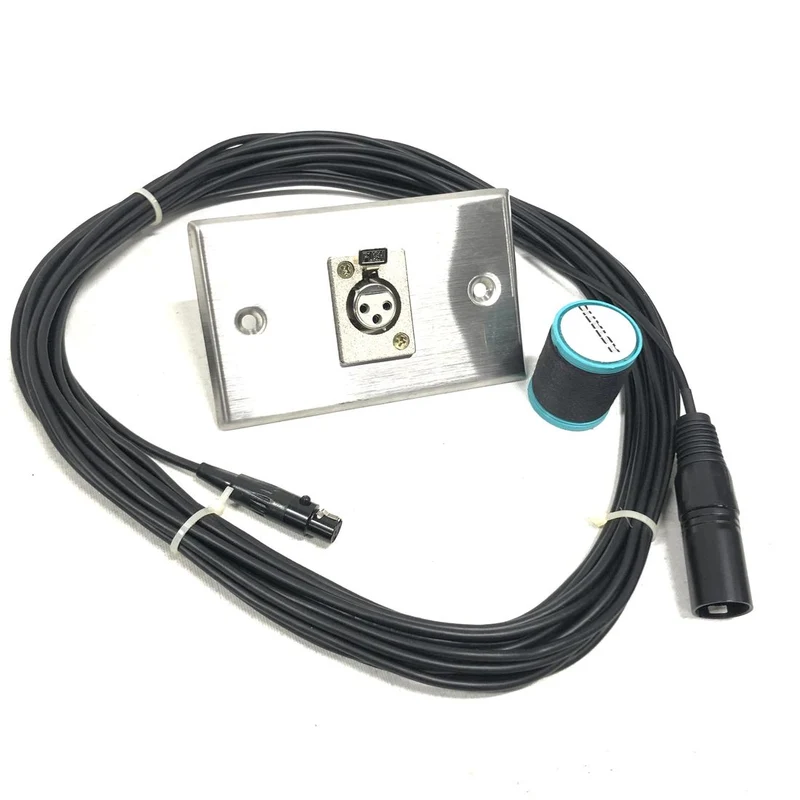

The Astatic 1600VP Variable Pattern Hanging Microphone is designed to accurately capture vocals, speech, choirs, musical performances, and more. The 1600VP features a remote with variable polar patterns and low-frequency roll-off switch. Accurately dial in the appropriate polar pattern to minimize noise and maximize clarity. The 1600VP includes 30' (9.1m) of cable and hanging hardware suitable for installing in houses-of-worship, halls, auditoriums, theaters, conference centers, etc.

• Captures choirs, overhead ambiance, group vocals, speech, sermons and more

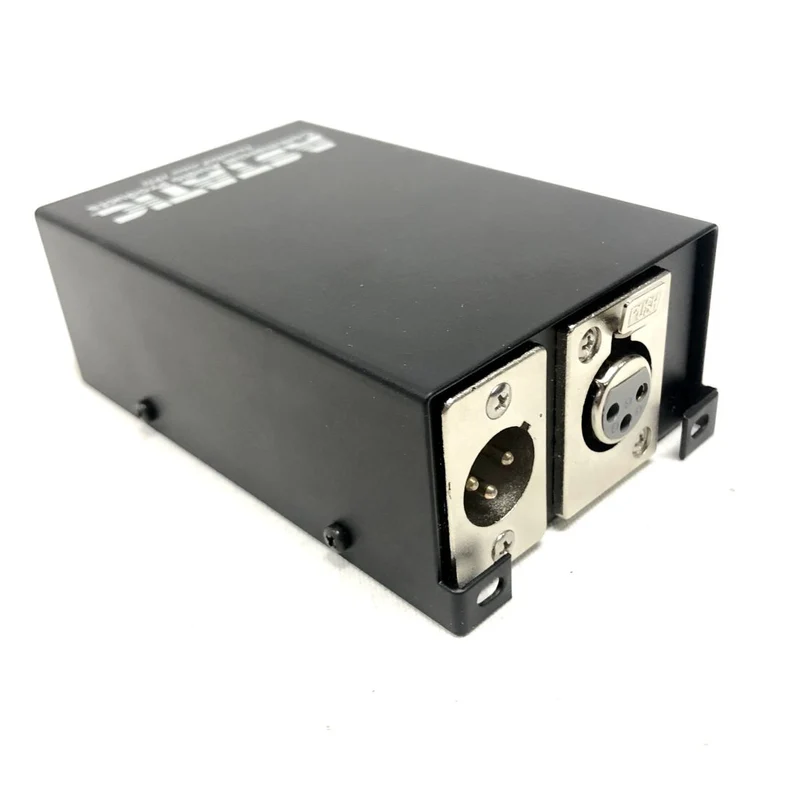

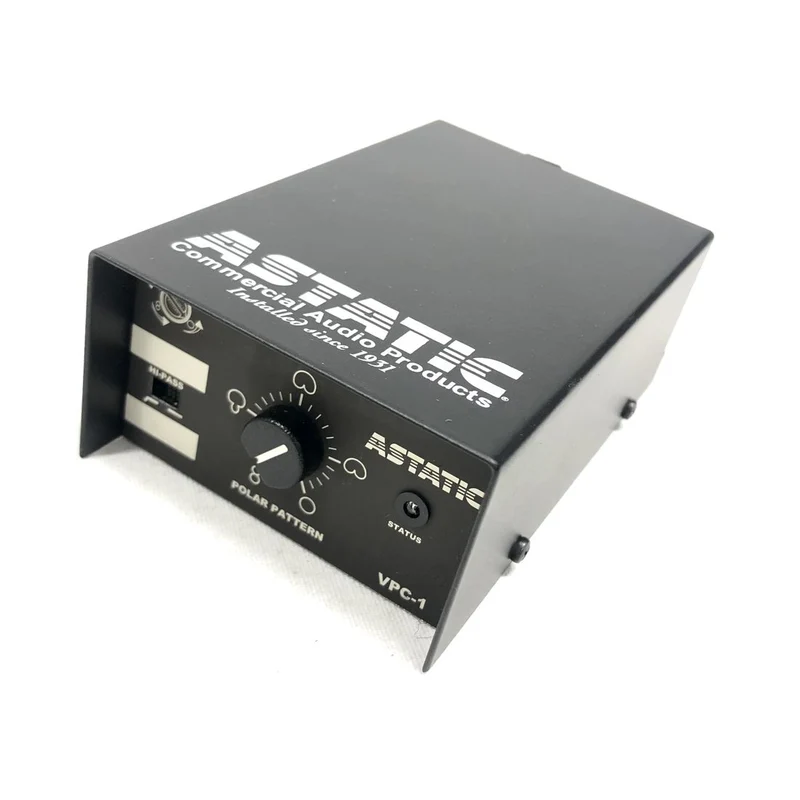

• Includes overhead hanging hardware and variable-pattern remote control
• Low frequency roll-off minimizes hum and ambiance
• Radio Frequency (RFI) rejection from PDAs, cell-phones, etc.

Microphone

Capsule	Condenser
Pattern Selection	Continuously Variable
High-Pass Filter	80 Hz, 12 dB/Octave

Performance

Frequency Range	40 Hz to 20 kHz
Maximum SPL	110 dB SPL (1 kHz, 1% THD)
Signal-to-Noise Ratio	22 dB A-Weighted

Connectivity

Output Connectors (Analog)

1 x TA3F 3-Pin Female 1 x XLR 3-Pin

Power

Operating Voltage	12 to 48 V (Phantom Power)
Operating Current Consumption	4 mA

Physical

Color

Black

Packaging Info

Package Weight	1.51 lb
Box Dimensions (LxWxH)	10.5 x 9.8 x 2.2"
